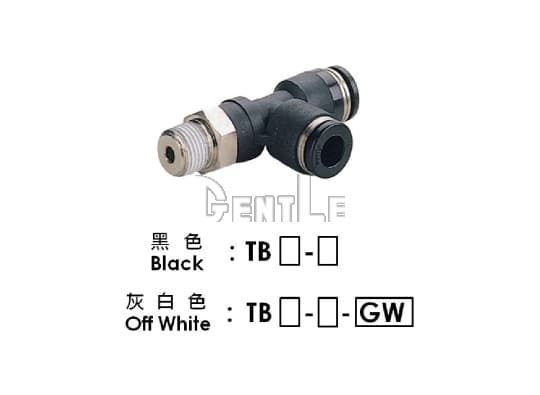

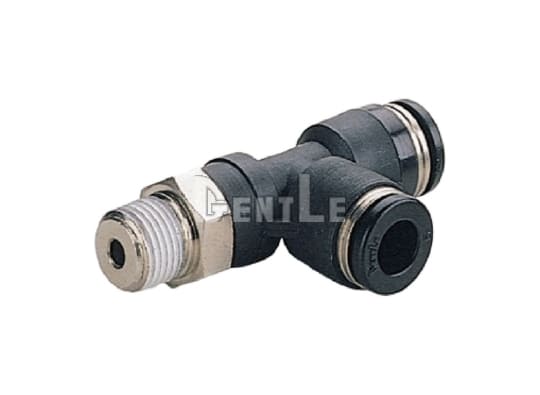

產品特點
- 快速連接及快速解除機構。
- 尼龍管及PU管皆可共用，螺紋部分密封劑塗佈標準化及多樣化的外觀尺寸，在使用上更為方便。
產品規格
公制尺寸

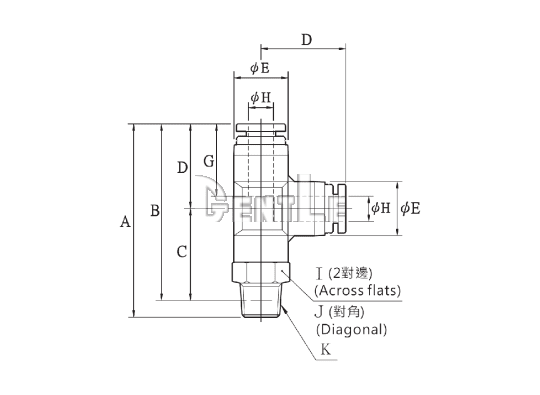

| 型號 | H 管徑 | K | A | B | C | D | E | G | I | J | 有效截面積 (mm2) | 重量 (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TB4-M5 | 4 | M5x0.8 | 37.5 | 34.6 | 17.4 | 17.2 | 10 | 14.9 | 10 | 11.5 | 1.9 | 11.3 |
| TB4-01 | RC1/8 | 41.9 | 37.9 | 20.7 | 10.1 | 4.3 | 13 | |||||
| TB4-02 | RC1/4 | 43.5 | 37.5 | 20.3 | 17 | 14 | 16.2 | 23.5 | ||||
| TB6-M5 | 6 | M5x0.8 | 43.2 | 40.3 | 20.1 | 20.2 | 13 | 17 | 12 | 13.9 | 1.9 | 15.7 |
| TB6-01 | RC1/8 | 46.2 | 42.2 | 22 | 12.5 | 17 | ||||||
| TB6-02 | RC1/4 | 49.2 | 43.1 | 22.9 | 14 | 16.2 | 26 | |||||
| TB6-03 | RC3/8 | 51 | 44.5 | 24.3 | 17 | 19.6 | 38.5 | |||||
| TB8-01 | 8 | RC1/8 | 50.5 | 46.2 | 24 | 22.2 | 15 | 18.1 | 14 | 16.2 | 20 | 22.6 |
| TB8-02 | RC1/4 | 53.5 | 47.2 | 25 | 28.5 | |||||||
| TB8-03 | RC3/8 | 55.3 | 48.5 | 26.3 | 17 | 19.6 | 41.1 | |||||
| TB10-01 | 10 | RC1/8 | 59 | 55 | 29 | 26 | 18 | 20.2 | 17 | 19.6 | 22 | 27 |
| TB10-02 | RC1/4 | 62 | 56 | 30 | 35 | 41.4 | ||||||
| TB10-03 | RC3/8 | 63 | 56.5 | 30.5 | 50.6 | |||||||
| TB10-04 | RC1/2 | 66 | 58 | 32 | 21 | 24.3 | 72 | |||||
| TB12-02 | 12 | RC1/4 | 66 | 60 | 32 | 28 | 21.5 | 23.3 | 21 | 24.3 | 35 | 61.1 |
| TB12-03 | RC3/8 | 67 | 60.5 | 32.5 | 59 | 62.4 | ||||||
| TB12-04 | RC1/2 | 70 | 62 | 34 | 77.5 |
