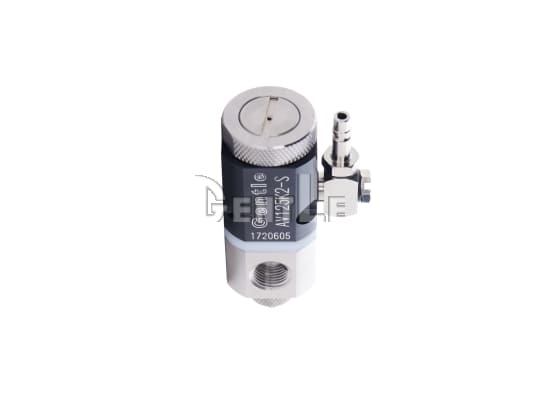

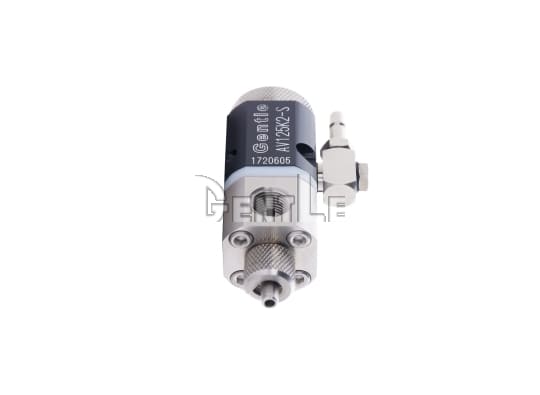

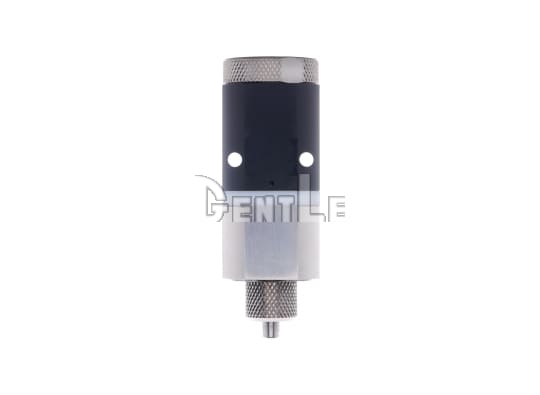

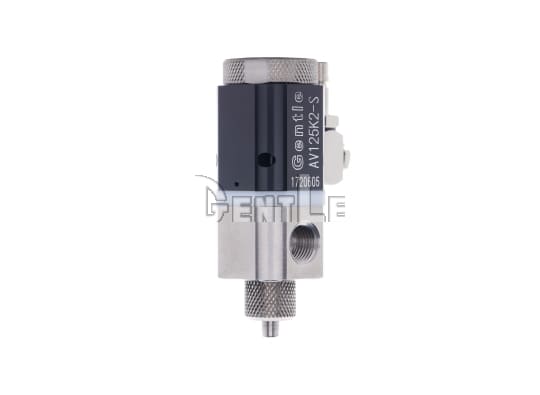

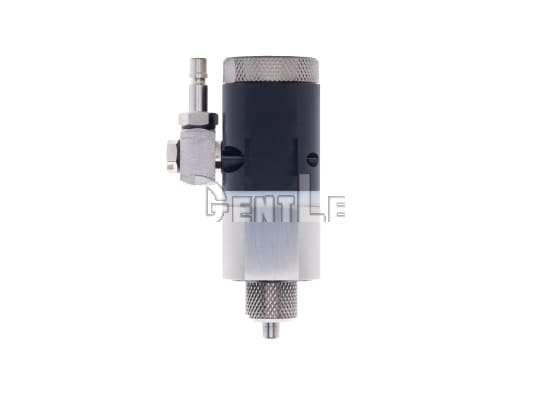

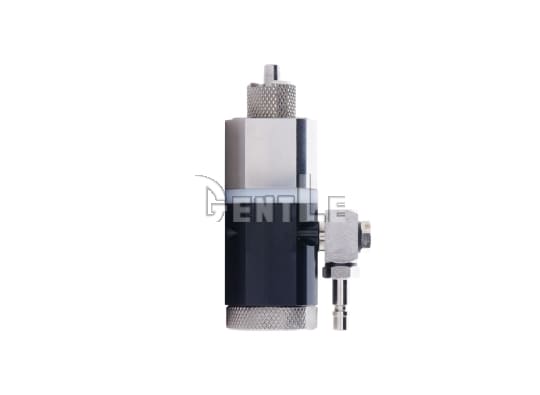

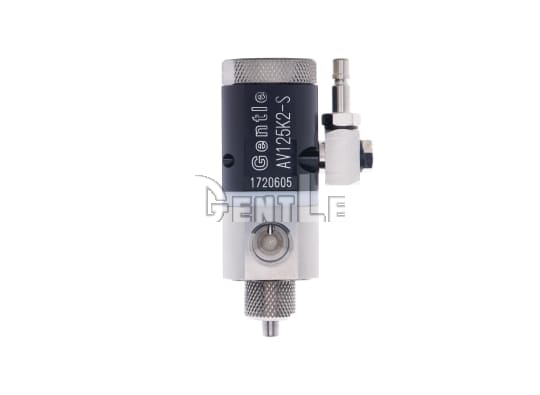

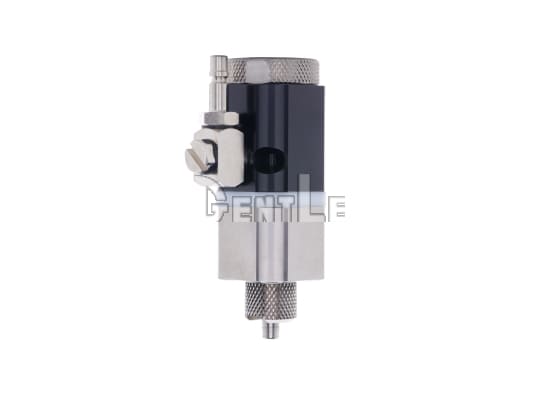

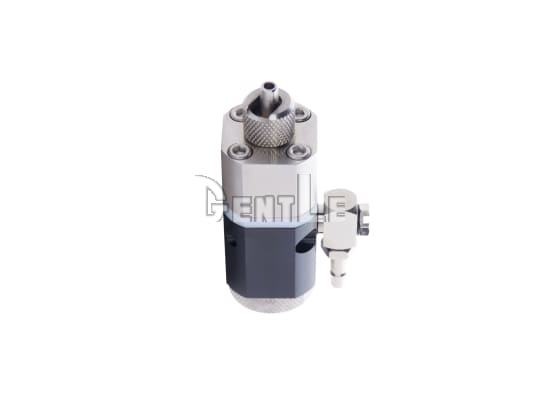

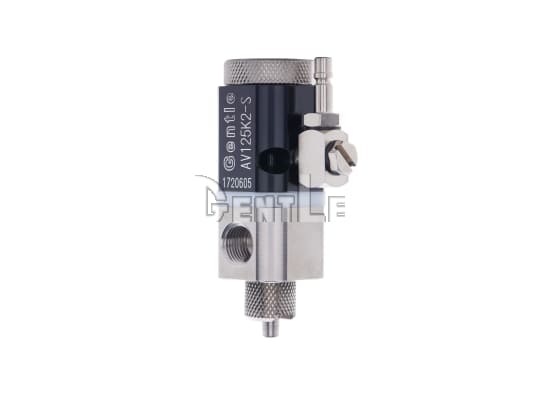

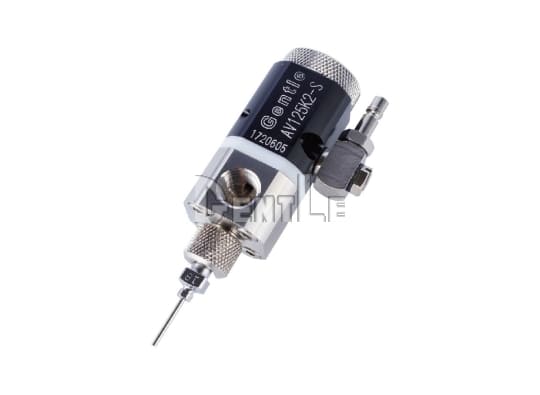

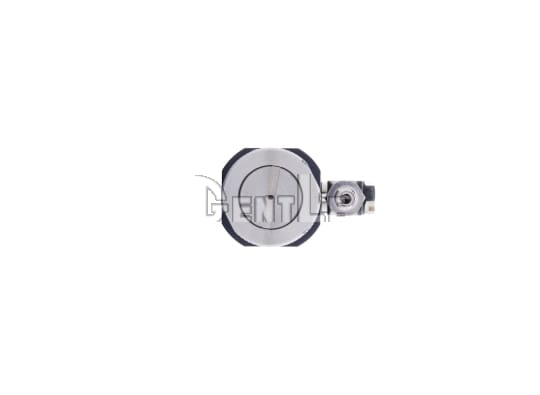

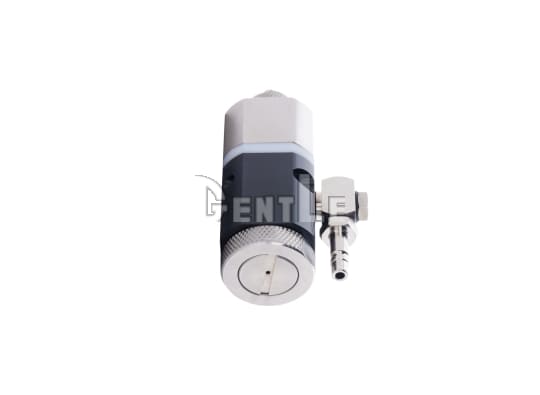

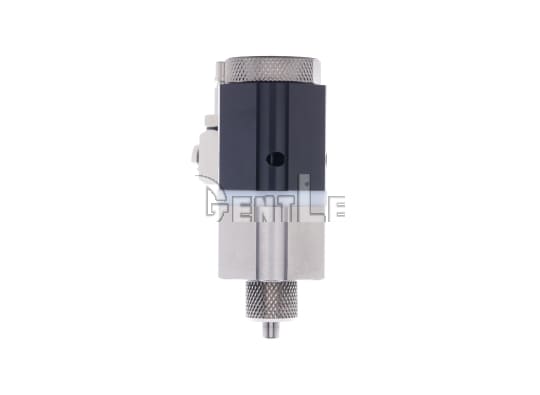

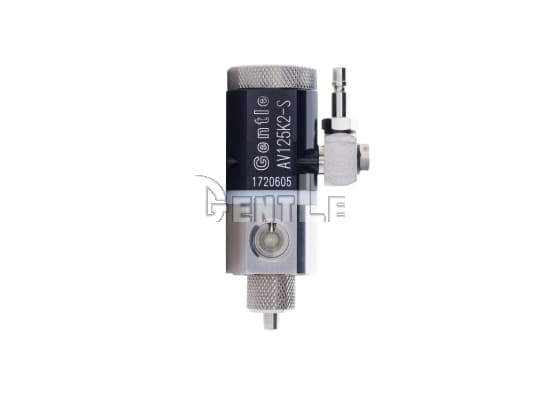

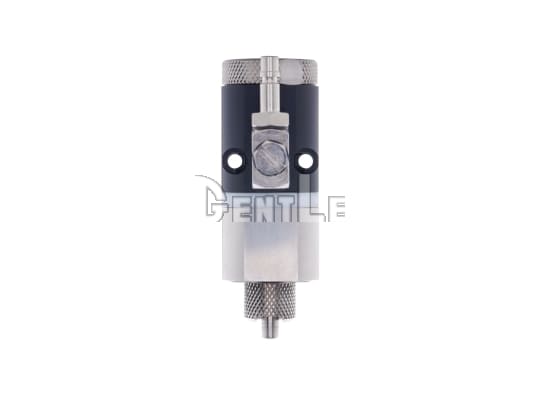

GENTLE_AV125K2-S
Teflon Diaphragm Valve
- 2D / 3D CAD preview, login and download the files!
- Brand
Products
請選擇分類
- All Products
- Pneumatic Series
- GENTLE Fittings
- GENTLE DC Fan Ionizer
- CONVUM Ltd.
- FUJIKURA
- FUJI LATEX Co., Ltd.
- KOGANEI Corporation
- iB series
- Air Cylinders, Hands
- Air Valves
- Air Filters, Regulators, Pressure Gauges
- Flow Rate Sensor Switches, Plachain Ducts, Pressure Switches
- Vacuum Equipment, Pads
- Electric Actuator
- Environmental Hygiene Equipment
- Static Electricity Removal
- Fluororesin Products
- Fixed Discharge Pump
- Medium Control Equipment
- Pulse Blow Series
- NKE Corporation
- TAKEX
- Dispensing Series
Features
- Customized wetted parts to choose from depending on the fluids and application.
- Easy tuning shot size, and is designed for the precision dispensing of low-viscosity fluids. Ideal for compact automatic machines.
- Fluid type: Photoresist, electrolyte, toluene, chemicals, food additives, etc. low-viscosity materials.
Specification
Measurement unit (mm)
| Teflon Diaphragm Valve AV125K2-S | |||
|---|---|---|---|
| Dispensing valve structure | Diaphragm valve | ||
| Min. dispensing volume | 0.01 mL | ||
| Flow rate (KV) | 1.0 L/min | ||
| Applicable viscosity | 1 ~ 1,000 cps | ||
| Wetted part material | SUS304 | ||
| Material delivery pressure | Max. 196 kPa | ||
| Port size | PT 1/8 | ||
| Operating air pressure | 343 ~ 686 kPa | ||
| Operating frequency | 200 cycles/min | ||
| Dimensions | (☐) 22 x (H) 64 mm | ||
| Weight | 150 g | ||
*The dispensing performance depends on material viscosity and partical size.
