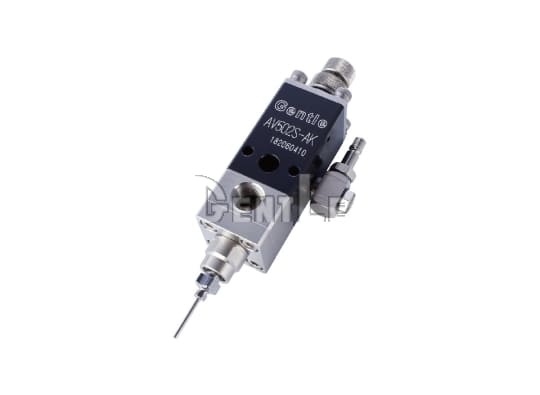

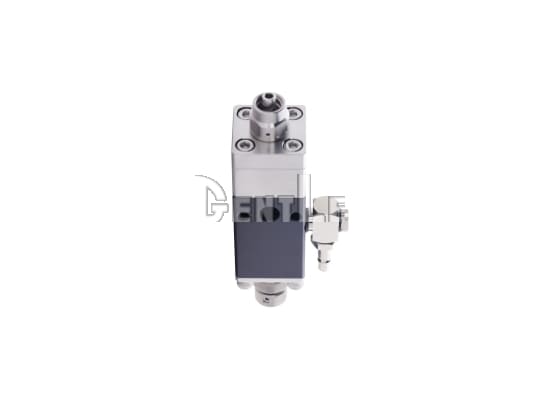

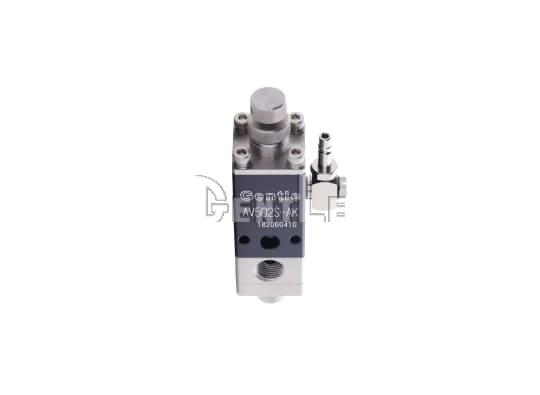

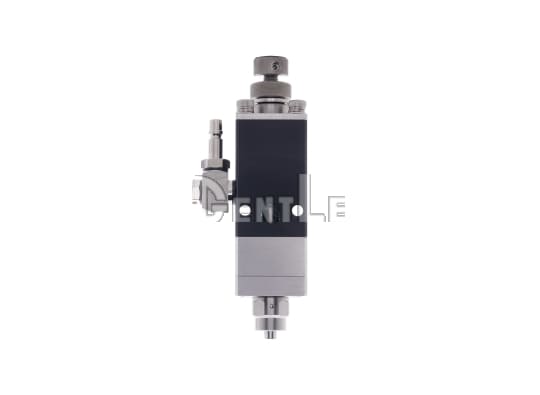

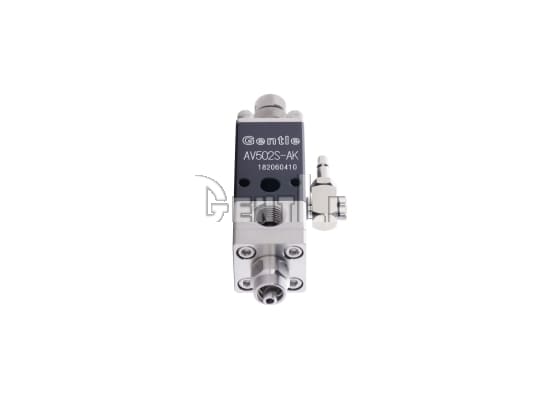

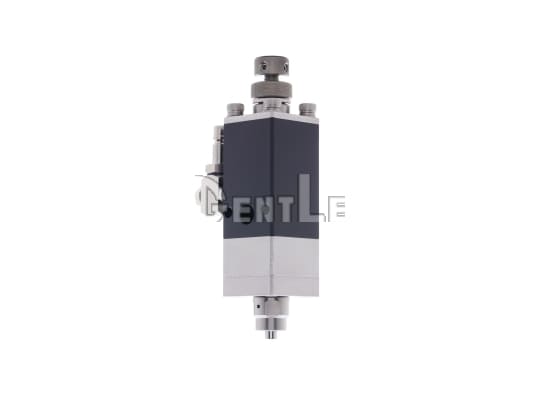

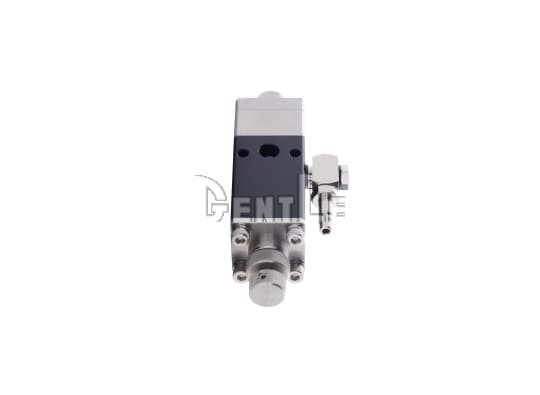

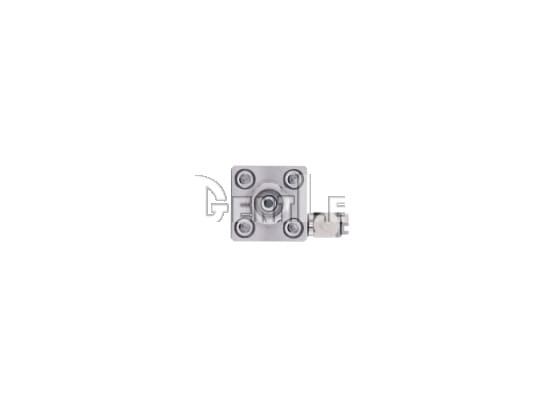

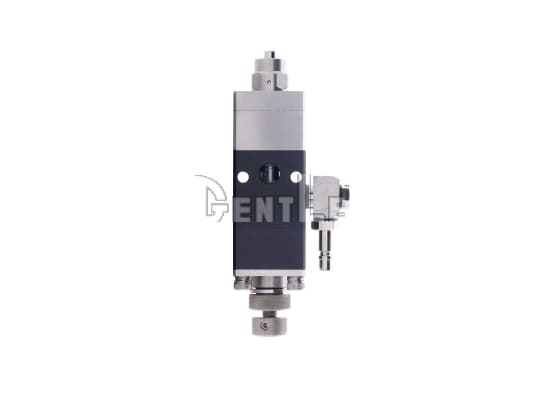

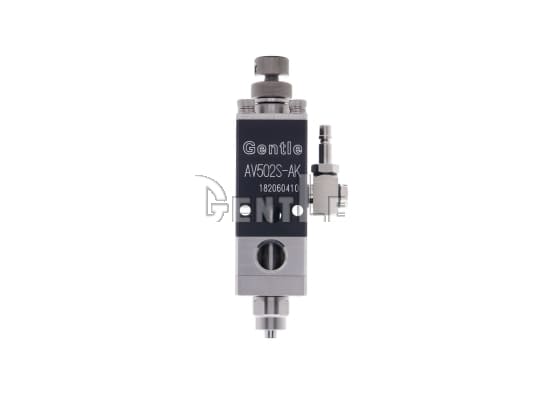

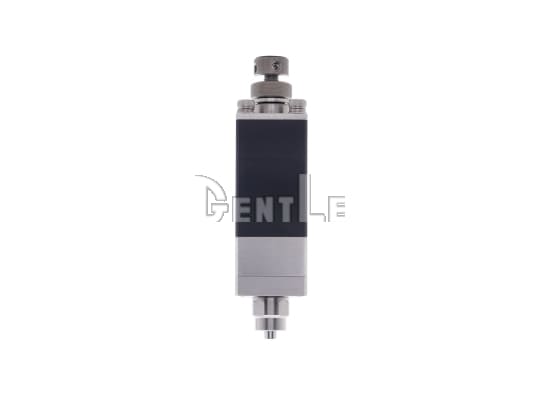

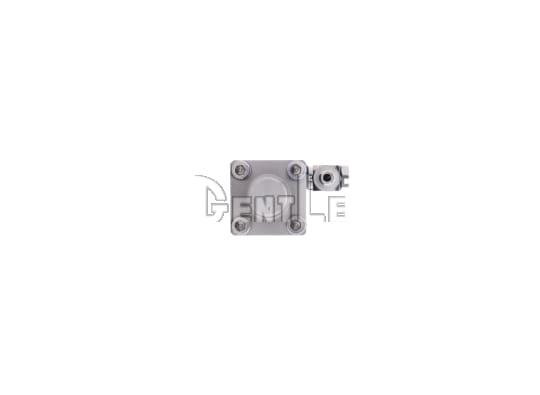

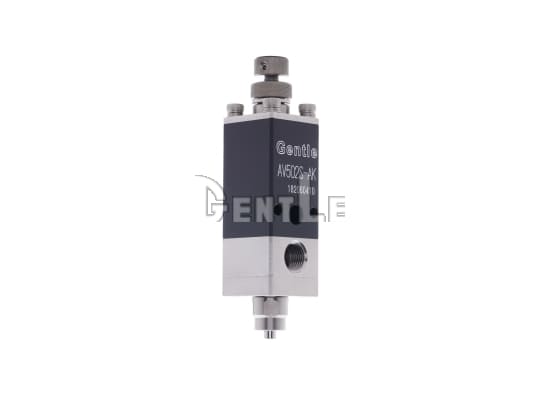

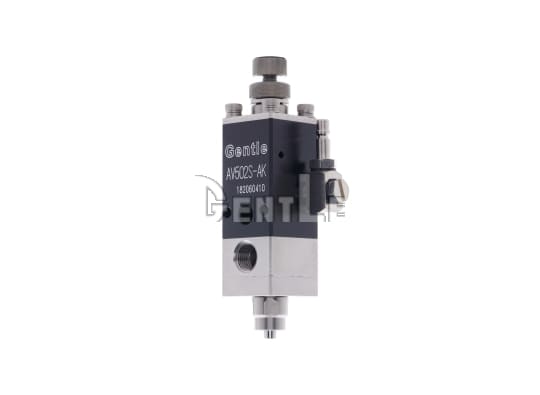

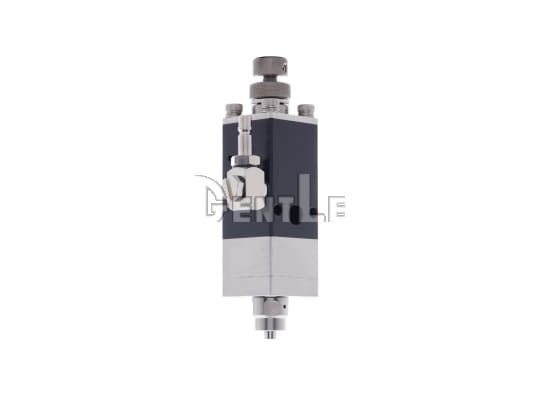

GENTLE_AV502-S

Needle Valve

  • 2D / 3D CAD preview, login and download the files!
  • Brand GENTLE Precision Dispensing Valves
Features
  • The Needle Valve designed with the needle valve and diaphragm structure, ideal for any constant application or volume of potting fluid. Customized wetted parts to choose from depending on the fluids and application.
  • Ideal for compact automatic machines.
  • Fluid Type: Solder pastes, epoxies, UV adhesives, filling materials, anaerobic adhesives.
Specification

Measurement unit (mm)

Needle Valve

AV502S-AK

Dispensing valve structure

Needle valve

Min. dispensing volume

0.01 mL
Flow rate (KV)1.5 L/min
Applicable viscosity1 ~ 50,000 cps
Wetted part materialSUS304
Material delivery pressureMax. 490 kPa
Port sizePT 1/8
Operating air pressure392 ~ 686 kPa
Operating frequency150 cycles/min
Dimensions(☐) 22 x (H) 88.4 mm
Weight145 g

*The dispensing performance depends on material viscosity and partical size.
