Features

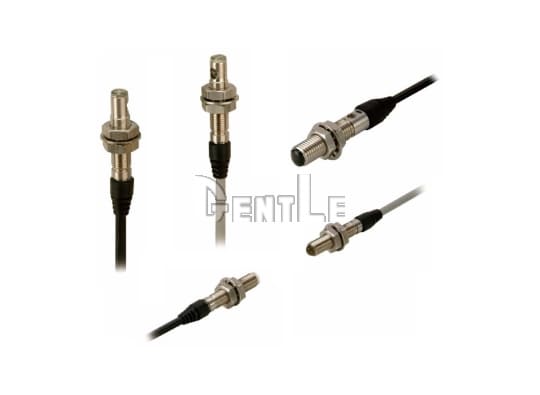

- Amplifier embedded in M5 or M6 threaded screw.
- Simple installation reduces man-hours.
- Replacing fiber sensors contributes to lower power consumption.
Specification
| Model | Detection Method | Detecting Distance | Response Time | |
|---|---|---|---|---|
| NPN Type | PNP Type | |||
| UX-T100D | UX-T100DPN | Through beam | 1 m | Max. 0.5 ms |
| UX-T50DS | UX-T50DSPN | Through beam | 500 mm | |
| UX-R2 | UX-R2PN | Diffuse reflective | 3 ~ 20 mm | |
| UX-R3 | UX-R3PN | Diffuse reflective | 3 ~ 30 mm | |
| UX-R5 | UX-R5PN | Diffuse reflective | 3 ~ 50 mm | |
| UX-R5V | UX-R5VPN | Diffuse reflective | 3 ~ 50 mm | |
