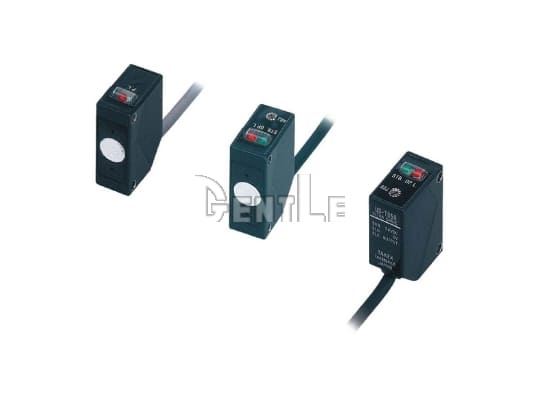

Through-Beam Ultrasonic Sensors
| Item | Spec. |
|---|---|
| Product type | Through-beam ultrasonic sensor |
| Series models | US-T50 US-T50PN |
| Model characteristics | US-T50: NPN output US-T50PN: PNP output |
| Detection method | Through beam |
| Detecting distance | 500 mm or less |
| Detection object | 10 × 30 mm, sample object: 1 mm thick aluminum plate |
| Power supply | 24VDC ±10%, ripple 10% or less |
| Current consumption | Transmitter: 25 mA or less receiver: 15 mA or less |
| Response time | 10 ms or less |
| Operating angle | 20° at receiver |
| Ultrasonic frequency | 380 kHz ±10 kHz |
| Indicators | Operation indicator: red LED stability indicator: green LED |
| Sensitivity adjustment | Provided |
| Material | Case/nut: heat-resistant ABS resin detection side: glass epoxy, conductive EPDM |
| Operating temperature range | −10 to +55°C, non-freezing |
| Ambient humidity | 35–85% RH, non-condensing |
| Ambient wind speed | 1 m/s max. |
| Protective structure | IP54, no water drops allowed on sensing head |
| Weight | 80 g or less each, transmitter/receiver |
Specification notes
Q1: What are the TAKEX US-T50 and US-T50PN?
A: They are through-beam ultrasonic sensors that use an opposing transmitter and receiver for object presence and passage detection.
Q2: What is the detecting distance of the US-T50/US-T50PN?
A: The detecting distance is 500 mm or less.
Q3: What is the difference between US-T50 and US-T50PN?
A: US-T50 provides an NPN output, while US-T50PN provides a PNP output. Their main sensing specifications are otherwise the same.
Q4: Can the US-T50/US-T50PN detect transparent film?
A: Yes. Transparent film detection is one of the intended applications, including materials with different transparency, colors, and materials.
Q5: Can the US-T50/US-T50PN detect transparent trays?
A: Yes. The US-T50 is used for detecting the passage of transparent trays.
Q6: What power supply is required?
A: Both models operate from 24VDC ±10% with ripple of 10% or less.
Q7: What is the response time?
A: The response time is 10 ms or less.
Q8: Can sensitivity be adjusted?
A: Yes. The receiver includes a sensitivity adjustment function for setting the sensor according to the target and installation conditions.
Q9: What is the protection rating?
A: The protective structure is IP54. Water drops must not remain on the sensing head, and ambient wind speed should be 1 m/s or less.
Q10: How do I choose between US-T50 and US-T50PN?
A: Select US-T50 when an NPN output is required and US-T50PN when a PNP output is required by the control system.
