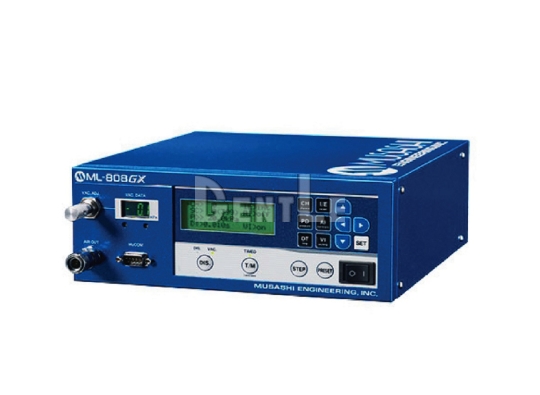

High Precision Dispenser (flexible with viscosity change)
| Model | ML-808GX | |
|---|---|---|
| Control system | Microprocessor / pneumatic | |
| Dispensing method | Air pulse stabilizing circuit | |
| Dispensing mode | Timed mode / manual mode | |
| Compressed air outlet | 0.020 ~ 0.800 MPa | |
| Dispensing period | 0.01 ~ 999.9 s | |
| Vacuum pressure range | -0.020 ~ 0 MPa | |
| Vacuum time range | 0.001 ~ 4.000 s | |
| Main function | Auto increment function, auto slope function, express shot function, RS-232C communication function, I/O communication function | |
| Program memory | 400 CH | |
| RS-232C serial communication | Yes | |
| Input voltage | AC100 ~ 240V 50 / 60 Hz | |
| Power consumption | 40 W | |
| Dimensions | W255 x D262 x H95 mm | |
| Weight | 5.0 kg | |
