Features
- PAT Pulse Stabilization: Patented air-pulse circuit ensures consistent pressure and flow for ultra-stable dispensing.
- Industry 4.0 Compatible: Supports multi-error signal outputs and remote pressure setting for seamless smart-factory integration.
- Simple Log Function: Built-in operation logs and dispense counter for clear production traceability.
- Low-Level Alerts: Precision low-volume detection prevents unexpected downtime.
- 100-Channel Memory: Store and recall up to 100 dispense recipes for instant batch switching.
Specification

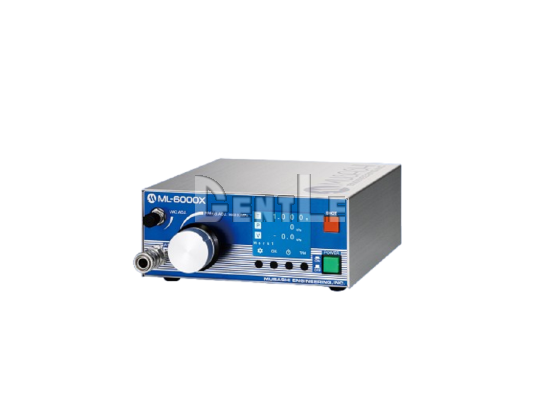

| Model | ML-6000X-CTR-VHR | ML-6000X-CTR-GP | |
|---|---|---|---|
| Control Method | Digital microcomputer + pneumatic | ||
| Dispense Modes | Timed / Manual | ||
| Dispense Pressure | 5 ~ 700 kPa | ||
| Dispense Time | 0.001–99.999 s ⇄ 0.01–999.99 s ⇄ 0.1–9,999.9 s (one-touch toggle) | ||
| Vacuum Pressure | 0 ~ -20.0 kPa (600kPa supply) | ||
| Main Functions | Operation logs, dispense counter, alert outputs, low-level alerts, multi-error outputs, channel register/switch/copy, key lock, interval dispense, language switch, mode switch, stopwatch | ||
| Channels | 100 CH | ||
| Power Supply | DC24V ± 10% | ||
| Power Consumption | 12W | ||
| Dimensions (WxDxH) | W180 x D185 x H83 mm | ||
| Weight | 2.2 kg | 2.1 kg | |
※ Dispense performance depends on material viscosity and particle size.
