10mm Vacuum Switching Valve
※ Discontinuation Notice: The entire MPV4 Series has been officially discontinued. The recommended replacement is the MPV42 Series.
| Item | Unit | MPV42 | |
|---|---|---|---|
| Working fluid | Non-lubricated air | ||
| Ambient temperature | ºC | 0 ～ 60 (without freezing) | |
| Pressure range (VP) | kPa | -90 ~ 0 | |
| Pressure range (DP) | MPa | 0 ～ 0.5 | |
| Pressure range (P) | MPa | 0.25 ～ 0.5 | |
| Blow-off flow | L/min (ANR) | 10 (at 0.5) | |
| Vacuum valve function | Normally open, Normally closed, Self-holding | ||
| Vacuum valve control type | Pilot operated poppet | ||
| Blow-off valve control type | Poppet | ||
| Body width | mm | 10 | |
| Effective area (vacuum valve) | mm² | 2.4 | |
| Effective area (blow-off valve) | mm² | 0.2 | |
| Control flow (vacuum valve) | L/min (ANR) | About 19 (when -101kPa) | |
| Control flow (blow-off valve) | L/min (ANR) | About 10 (when 0.5MPa) | |
| Weight | g | 57 | |
Q1: What kind of equipment is the MPV42 suitable for?
A: The MPV42 is suitable for equipment that needs compact installation, light weight, and high-speed handling, such as mounting machines and inspection equipment.
Q2: What is the main advantage of the MPV42?
A: Its main advantage is the compact all-in-one design with a slim 10 mm body and a light 57 g weight.
Q3: Can the MPV42 be used with vacuum sensors?
A: Yes. The MPV42 can be configured with MPS-9 and MPS-10 vacuum sensors, or without a sensor.
Q4: What valve functions are available in the MPV42?
A: The series is available in normally open, normally closed, and self-holding valve functions.

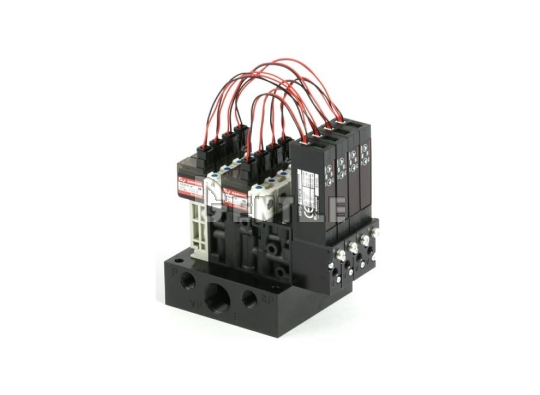

Q5: Can the MPV42 be mounted on a manifold?
A: Yes. The MPV42 supports manifold configurations up to 5 units.
Q6: What is the benefit of using MPV42 with MC42?
A: Because MPV42 and MC42 use common attachments, replacement and system integration are more convenient.
Q7: What should be noted when selecting the self-holding type?
A: If the self-holding type is selected, the energy-saving function of a sensor cannot work.
Q8: Is there a minimum compressed air requirement for operation?
A: Yes. Compressed air above 0.25 MPa is necessary for operation.
