Features
- For viscosity ranges up to 1,000,000 mPa·s.
- Excellent positioning accuracy.
- Dispensing applications with UV adhesives solder pastes, silicones, etc..
- Excellent operability, available in three languages: Chinese, English and Japanese; rod replacement.
- Mountable on automatic machines, USB and RS232C communication ports for sending and receiving all parameters and remote control operation.
- Equipped with Synchro Speed function.
- CE Marking certified, EU RoHs compliant.
Specification

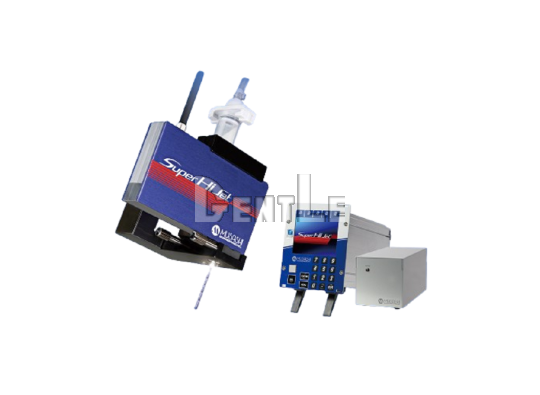

| Model | Super Hi Jet | ||
|---|---|---|---|
| Control system | Microcomputer digital control system | ||
| Dispensing method | Jet type | ||
| Applicable materials | Underfills, Ag paste, adhesives, epoxy, grease, etc. | ||
| Applicable containers | 5 ~ 70 mL syringe, tank | ||
| Dispensing mode | Timed mode / manual mode LINE mode / DOT mode | ||
| Operating frequency | 300 Hz (Max. burst frequency：500 Hz) | ||
| Program memory | 100 CH | ||
| Temperature setting range | Max. 100 ºC | ||
| Input voltage | AC100 ~ 240V 50 / 60 Hz | ||
| Head | Dimensions | W89.5 x D119.5 x H125 mm | |
| Weight | 0.7 kg | ||
| Head controller | Dimensions | W106 x D171.3 x H128.4 mm | |
| Weight | 1.6 kg | ||
| Power consumption | 75 W | ||
| Controller power supply | Dimensions | W140 x D239 x H108 mm | |
| Weight | 2.0 kg | ||
| Temperature controller | Dimensions | W120 x D140 x H90 mm | |
| Weight | 1.0 kg | ||
| Power consumption | 68 W | ||
