Features
- Precision Screw-Based Dispensing：Rotating screw mechanism ensures stable, uninterrupted flow of high-viscosity or filler-loaded materials.
- Ultra-Fine Bead Control：Supports ultra-narrow dispensing down to φ0.15mm—ideal for solder paste, precision parts, and tight-pitch layouts.
- Consistent Bead Shape and Flow Rate：Delivers uniform output and smooth coating lines, enhancing product quality and repeatability.
- Integrated Suck-Back Mechanism：Retracts fluid instantly after dispensing to prevent dripping and stringing, keeping operations clean.
- Automation-Ready Interface：Built-in D-sub 25-pin I/O for seamless integration with tabletop systems and automated production lines.
Specification

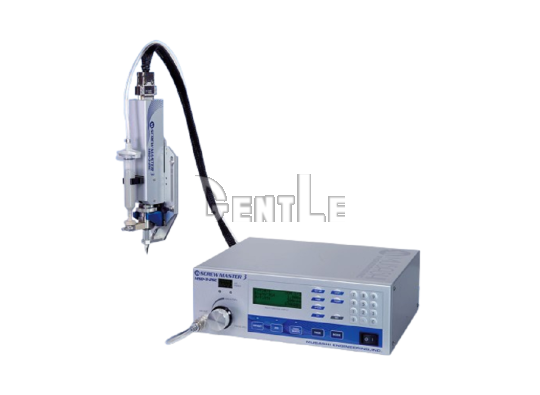

| Model | SCREW MASTER 3 | |||
|---|---|---|---|---|
| Dispensing Mechanism | High-precision screw dispensing system | |||
| Min. Dispensing Diameter | ø 0.15mm (based on solder paste) | |||
| Supported Viscosity | 50,000 – 500,000 mPa·s (reference range) | |||
| Pressure Range | 0.01 – 0.70 MPa (based on container and fluid properties) | |||
| Suck-Back Function | Yes | |||
| Compatible Containers | Syringes, cartridges | |||
※ Actual dispensing results may vary depending on fluid viscosity, density, and system settings. For optimal performance, use with genuine MUSASHI controllers and accessories.
