Features
- Optimized for Low-Viscosity Materials: Ideal for dispensing fluid adhesives like anaerobic and instant glues with no dripping.
- Tool-Free Setup: Patented tubing installation enables quick, precise setup without manual adjustments.
- Extended Tubing Life: Unique mechanism reduces bubbles and leaks, improving fluid stability and tubing durability.
- Easy Maintenance: Only the tube contacts fluid; quick to clean and replace with minimal downtime.
- Digital Timer Control: Built-in timer allows accurate dispensing time settings for consistent process quality.
- Optional Manual Dispensing Pen: Available for flexible, localized manual dispensing tasks.
Specification

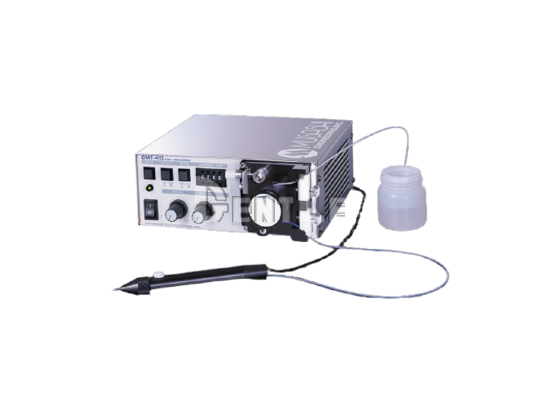

| Model | MT-410 |
|---|---|
| Dispensing Method | Peristaltic (rotary tube drive) |
| Dispensing Modes | Timed mode / Manual mode |
| Time Setting Range | 0.01 to 99.99 seconds |
| Rotation Speed | 0 to 120 rpm |
| Power Supply | AC100～240V 50 / 60 Hz |
| Power Consumption | 25W |
| Dimensions (W×D×H) | W188 x D208 x H75 mm |
| Weight | 3.0 kg |
※ Dispense performance depends on material viscosity and particle size.
