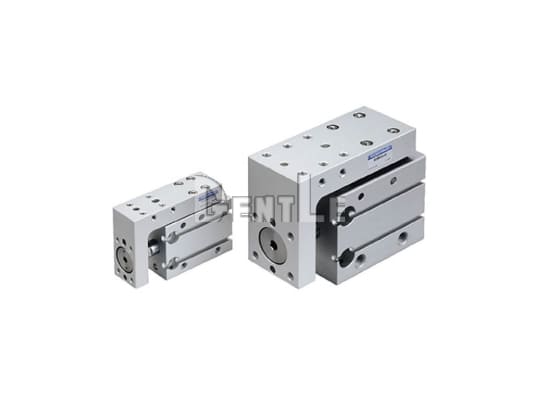

Features
- Direct mounting, smallest, lightest, and compact.
- Possible to create all assembly processes with just BC cylinders.
- Wide range of variations from ø6～ø125mm.
- Two-color LED sensor switches.
Specification
| Type | Bore | Stroke | Port Size |
|---|---|---|---|
| Double acting type | 6 ~ 125 mm | 5 ~ 100 mm | M3x0.5 ~ RC3/8 |
| Single acting push type | 6 ~ 50 mm | 5 ~ 30 mm | M3x0.5 ~ RC1/8 |
| Single acting pull type | 6 ~ 50 mm | 5 ~ 30 mm | M3x0.5 ~ RC1/8 |
| Double rod end cylinders | 6 ~ 125 mm | 5 ~ 100 mm | M3x0.5 ~ RC3/8 |
| Cylinder with guide | 8 ~ 40 mm | 5 ~ 60 mm | M3x0.5 ~ RC1/8 |
