Features

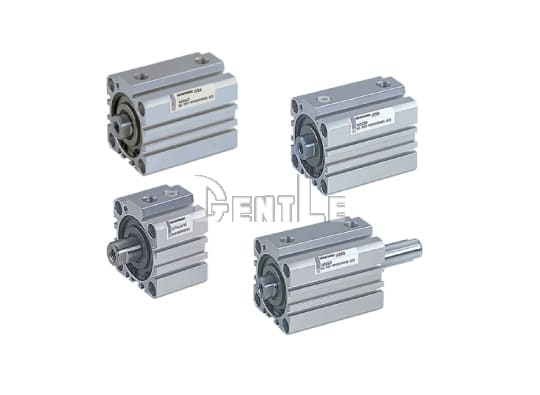

- New variation of “Stroke-adjustable cylinder” and “Low-friction cylinder” are added to the series.
- Short and compact body achieves total space saving.
- Responds to various needs with cylinder bores from 6mm to 100mm and versatile function.
- A square rod with non-rotating function can provide a highly efficient design for mechanical devices.
Specification
| Model | Bore | Stroke | Port Size | Sensor Mountable |
|---|---|---|---|---|
| CDA | 6 ~ 100 mm | 5 ~ 300 mm | M3x0.5, M5x0.8, RC1/8, RC1/4, RC3/8 | No |
| CDAS | Yes |
