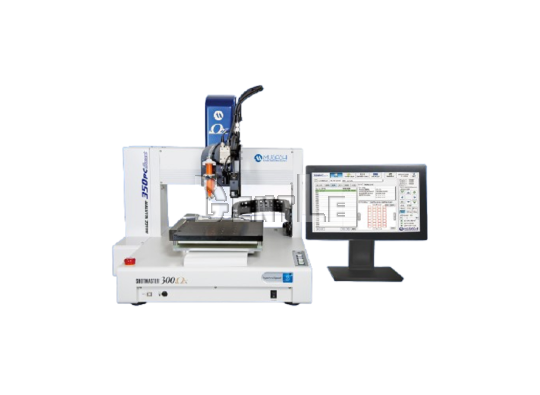

Name: Desktop Robot with Image Recognition IMAGE MASTER
Brand: MUSASHI Engineering
SKU: MUSASHI_350PC

MUSASHI_350PC

Desktop Robot with Image Recognition IMAGE MASTER

Brand

Add to Inquiry Cart

Desktop Robot with Image Recognition

IMAGE MASTER 350PC Series

Model

350PC Smart

SM200 ΩX

350PC Smart

SM300 ΩX

350PC Smart

SM400 ΩX

350PC Smart

SM500 ΩX

Number of axes controlled

3 axes

Control method

PTP control / interpolation control

Payload

Y-azis

20 kg

Z-axis

15 kg

Working area

X-axis, Y-axis

200 mm

300 mm

400 mm

500 mm

Z-axis

80 mm

Max. PTP operation speed

X-axis, Y-axis

1 ~ 500 mm/s

Z-axis

1 ~ 400 mm/s

Interpolation speed

X-axis, Y-axis

0.1 ~ 500 mm/s

Z-axis

0.1 ~ 400 mm/s

Repetitive positioning accuracy

X-axis, Y-axis

±0.005 mm

Z-axis

±0.005 mm

Main functions

3D alignment, work height measurement, nozzle height detection,

syringe setup, gap measurement data retention, automatic focus, production log

Options

Leakage protection box, field network unit, teaching pendant set, external operation box,

work bases, holder units, nozzle cleaner, protection cover, signal tower, dispenser connection cable

Input voltage

AC 100 ~ 240 V

50 / 60 Hz

Power consumption

250 W

300 W

Dimensions

(excluding protrusion)

465 mm

595 mm

695 mm

795 mm

460 mm

570 mm

670 mm

770 mm

590 mm

Weight

47 kg

60 kg

79 kg

94 kg

Desktop Robot with Image Recognition IMAGE MASTER 350PC Series
Model		350PC Smart SM200 ΩX	350PC Smart SM300 ΩX	350PC Smart SM400 ΩX	350PC Smart SM500 ΩX
Number of axes controlled		3 axes
Control method		PTP control / interpolation control
Payload	Y-azis	20 kg
Payload	Z-axis	15 kg
Working area	X-axis, Y-axis	200 mm	300 mm	400 mm	500 mm
Working area	Z-axis	80 mm
Max. PTP operation speed	X-axis, Y-axis	1 ~ 500 mm/s
Max. PTP operation speed	Z-axis	1 ~ 400 mm/s
Interpolation speed	X-axis, Y-axis	0.1 ~ 500 mm/s
Interpolation speed	Z-axis	0.1 ~ 400 mm/s
Repetitive positioning accuracy	X-axis, Y-axis	±0.005 mm
Repetitive positioning accuracy	Z-axis	±0.005 mm
Main functions		3D alignment, work height measurement, nozzle height detection, syringe setup, gap measurement data retention, automatic focus, production log
Options		Leakage protection box, field network unit, teaching pendant set, external operation box, work bases, holder units, nozzle cleaner, protection cover, signal tower, dispenser connection cable
Input voltage		AC 100 ~ 240 V 50 / 60 Hz
Power consumption		250 W		300 W
Dimensions (excluding protrusion)	W	465 mm	595 mm	695 mm	795 mm
	D	460 mm	570 mm	670 mm	770 mm
	H	590 mm	590 mm	590 mm	590 mm
Weight		47 kg	60 kg	79 kg	94 kg
