Features

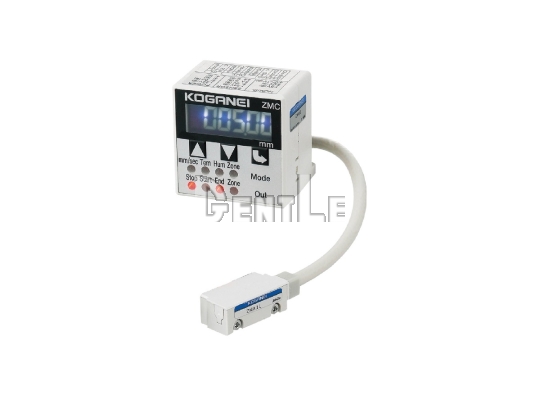

- The product can measure stop position of air cylinders by 1/100 mm unit, determine work piece tolerance pass/fail with combination of counter, and manage history by retrieving data into PLC.
- Resolution: 0.0025mm; sensor accuracy: ±0.0015 mm (when measuring 10 mm).
- Can be mounted with Mini Guide Sliders and Rod Sliders.
Specification
| Model | Resolution | Accuracy |
|---|---|---|
| ZM | 0.0025 mm | ±0.013 mm |
