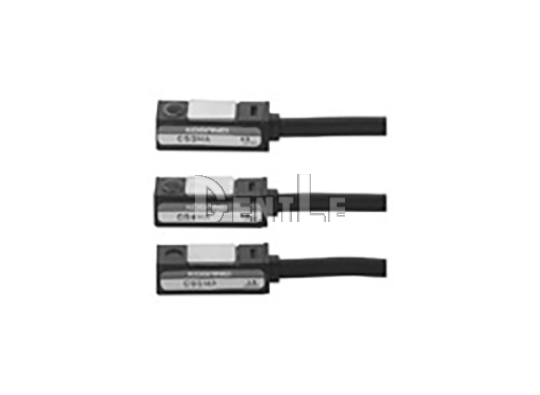

Specification
| Model | Type | Wiring Type | Load Current | Applicable Cylinder |
|---|---|---|---|---|
| CS2B Series | Reed switch | 2-lead wire AC type | 2 ~ 200 mA |
|
| CS3B Series | 10 ~ 46 mA | |||
| CS4B Series | 5 ~ 25 mA | |||
| CS5B Series | 0.1 ~ 80 mA | |||
| CS2F Series | Reed switch | 2-lead wire AC type | 2 ~ 200 mA | Slim cylinder(not including slim block cylinder 16mm), Dyna cylinder, swing cylinder, GA |
| CS3F Series | 10 ~ 46 mA | |||
| CS4F Series | 5 ~ 25 mA | |||
| CS5F Series | 0.1 ~ 80 mA | |||
| CS3H Series | Reed switch | 2-lead wire DC, AC type | DC：10 ~ 50 mA AC：10 ~ 50 mA | Jig cylinder J series, TDA from10 to 32mm (previous type), slide unit |
| CS4H Series | DC：5 ~ 25 mA AC：5 ~ 20 mA | |||
| CS5H Series | DC：0.1 ~ 60 mA AC：2 ~ 25 mA | |||
| CS9H Series | 3-lead wire DC type | Max. 100 mA | ||
| CS3M Series | Reed switch | 2-lead wire DC, AC type | DC：10 ~ 50 mA AC：10 ~ 50 mA AC：5 ~ 15 mA | Slim cylinder, twist cylinder, twinport cylinder, swing cylinder, ORC, ORCA, ORGA, MRG, ORK (not including ORK 16mm), GA |
| CS4M Series | DC：5 ~ 25 mA AC：5 ~ 20 mA | |||
| CS5M Series | DC：0.1 ~ 60 mA AC：2 ~ 25 mA | |||
| CS5T Series | Reed switch | 2-lead wire DC, AC type | DC：0.1 ~ 40 mA AC：2 ~ 25 mA | Pen cylinder, multi mount cylinder, TDA 6mm, RAP, RAN, knock cylinder double acting type, swing cylinder, air hand CHDUL, dyna cylinder, SD cylinder, ORK 16mm, AMT, ARTB, ACY(for the intermediate stopper). |
| CS11T Series | 2-lead wire DC type | 5 ~ 40 mA | ||
| ZB430 Series | Reed switch | 2-lead wire DC type | 4 ~ 50 mA | Jig cylinder J series, TDA from10 to 32mm (previous type) |
| ZC201 Series | Reed switch | 2-lead wire DC, AC type | DC：0.1 ~ 40 mA AC：4 ~ 25 mA | Pen cylinder |
| ZC205 Series | 2-lead wire DC type | 5 ~ 40 mA | ||
| ZC301 Series | Reed switch | 2-lead wire DC, AC type | DC：0.1 ~ 40 mA AC：2 ~ 25 mA | AGTB、AGTC、ORCJ、MRC |
| ZC305 Series | 2-lead wire DC type | 5 ~ 40 mA | ||
| ZC601 Series | Reed switch | 2-lead wire DC, AC type | DC：0.1 ~ 40 mA AC：2 ~ 25 mA | Axis cylinder |
| ZC605 Series | 2-lead wire DC type | 5 ~ 40 mA | ||
| ZE101 Series | Reed switch | 2-lead wire DC, AC type | DC：Max. 40 mA AC：Max. 20 mA | Jig cylinder C series, twin rod cylinder B series, YZ module (only the horizontal lead wire type), rod cylinder, high multi cylinder, jig cylinder with guide, AWT, ORS, MRS (only the horizontal lead wire type) |
| ZE102 Series | DC：5 ~ 40 mA AC：5 ~ 20 mA | |||
| ZE201 Series | DC：Max. 40 mA AC：Max. 20 mA | |||
| ZE202 Series | DC：5 ~ 40 mA AC：5 ~ 20 mA |
