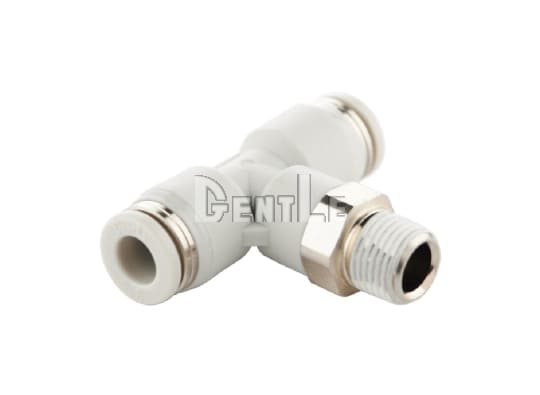

Features
- Quick attach and removal structure.
- Compatibility for both nylon and polyurethane tubes; standard sealant applied between threaded parts; easier use through large variety of types and sizes.

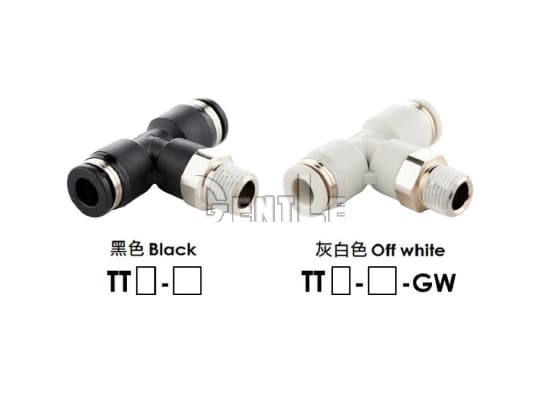

Specification

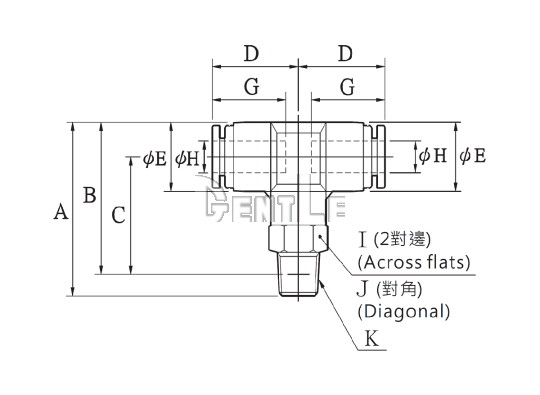

Metric Dimension
| Model | H Tube Size | K | A | B | C | D | E | G | I | J | Effective Area (mm2) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TT4-M5 | 4 | M5x0.8 | 25.4 | 23.3 | 17.4 | 17.2 | 10.2 | 14.9 | 10 | 11.5 | 1.5 | 11.5 |
| TT4-01 | RC1/8 | 28.4 | 24.4 | 19.3 | 4.1 | 13.2 | ||||||
| TT4-02 | RC1/4 | 31.4 | 26.8 | 21.7 | 14 | 16.2 | 23.9 | |||||
| TT6-M5 | 6 | M5x0.8 | 29.4 | 26.1 | 20.1 | 20.4 | 13.2 | 17 | 12 | 13.9 | 1.5 | 15.6 |
| TT6-01 | RC1/8 | 32.6 | 28.6 | 22 | 20.3 | 10 | 17.5 | |||||
| TT6-02 | RC1/4 | 35.6 | 29.6 | 23 | 14 | 16.2 | 25.3 | |||||
| TT6-03 | RC3/8 | 37.4 | 30.9 | 24.3 | 17 | 19.6 | 38.7 | |||||
| TT8-01 | 8 | RC1/8 | 34.2 | 30.2 | 22.5 | 22.7 | 15.3 | 18.1 | 14 | 16.2 | 16.5 | 22.5 |
| TT8-02 | RC1/4 | 37.2 | 31.2 | 23.5 | 28.2 | |||||||
| TT8-03 | RC3/8 | 39.1 | 32.6 | 24.9 | 17 | 19.6 | 40.8 | |||||
| TT10-01 | 10 | RC1/8 | 41.5 | 37.5 | 28.5 | 26.4 | 18.3 | 20.2 | 17 | 19.6 | 20 | 30.1 |
| TT10-02 | RC1/4 | 44.7 | 38.7 | 29.5 | 30 | 41.4 | ||||||
| TT10-03 | RC3/8 | 45.8 | 39.3 | 30.1 | 50.3 | |||||||
| TT10-04 | RC1/2 | 48.9 | 40.9 | 31.7 | 21 | 24.3 | 72.4 | |||||
| TT12-02 | 12 | RC1/4 | 48.8 | 42.8 | 32 | 28.2 | 21.6 | 23.3 | 21 | 24.3 | 30 | 61.5 |
| TT12-03 | RC3/8 | 49.8 | 43.8 | 33 | 47 | |||||||
| TT12-04 | RC1/2 | 53.8 | 45.8 | 35 | 78.3 |
