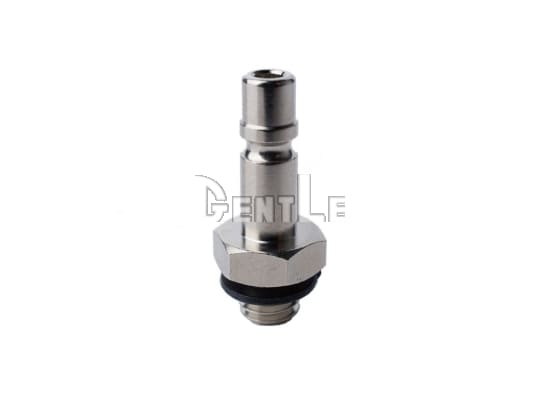

GENTLE MPM-M5 TAC Nut-Clamp Fitting｜Compact M5 Male Thread

• Face-Seal Airtightness: A single rubber washer above the male thread mates to the face-seal land for simple, reliable leak prevention.
• Compact Upright Body: Slim, space-saving design for tight enclosures and dense layouts.

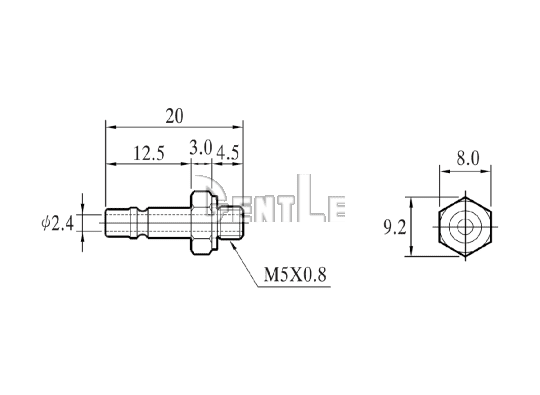

• Secure Threaded Seating: M5×0.8 male—hand-seat, then wrench-snug for vibration-resistant locking.
• Durable & Serviceable: Nickel-plated brass resists corrosion and wear; routine service focuses on the rubber washer and threads.
• Taiwan-Made Consistency: Tight tolerances simplify standardized spares and inventory.
• Applications: Test ports, valve-island jumpers, module terminations, wall-side upright installs, compact panel holes, and long-duty automation nodes.

Q1: Do I need PTFE tape?
A: Normally no. The face-seal with a rubber washer above the thread provides sealing. If leakage occurs after many reuses, replace the washer first.

Q2: Is it reusable?
A: Yes. Inspect the rubber washer and threads during maintenance; replace worn parts.

Q3: Typical use cases?
A: Lab tests, assembly lines, and single-point M5 threaded connections on valve islands or modules in dense layouts.

Q4: Any torque guidance?
A: Tighten until the face-seal seats with no leakage. Avoid over-torque that could damage the threads or rubber washer.

Q5: Can it connect PU/nylon tubes directly?
A: This model is an M5 male straight fitting (no push-in port). For PU/nylon (PA) tubing, pair it with an appropriate tube fitting or clamp accessory.
