MUSASHI_PSY-30FH-P

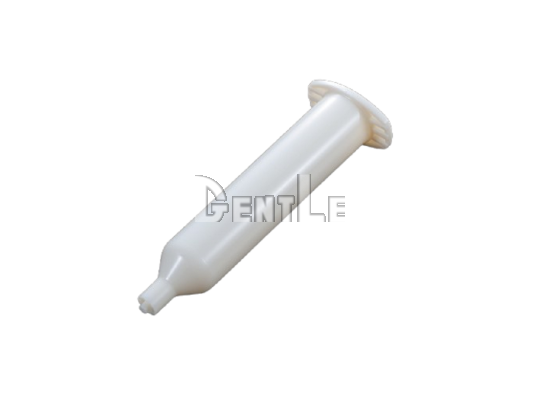

180℃ Heat-Resistant Syringe

  • Brand MUSASHI Engineering
Features
  • Heat Resistance up to 180°C: Built for high-temperature applications including thermal-cure and heated fluid dispensing.
  • PUR-Compatible: Optimized for reactive hot-melt adhesives (PUR) operating under 180°C.
  • High-Durability PBT Material: Excellent strength and resistance to heat and chemicals—won't warp, crack, or degrade.
  • Luer Lock Nozzle Connection: Standard screw-type thread ensures secure, leak-free dispensing.
  • Compact & Versatile Design: Measures 130.5 mm, weighs approx. 22 g—fits both manual and automated systems.
  • RoHS Certified: Made from eco-friendly, non-toxic materials for global compliance in electronics and medical production.



Handling Precautions

  1. This is a single-use disposable syringe. Do not reuse to avoid rupture or nozzle detachment.
  2. Avoid impact or dropping, especially under low-temperature conditions.
  3. Do not clean with strong solvents such as toluene, MEK, or acetone.
  4. Always operate within the specified temperature and pressure limits.
  5. Keep away from open flames and high-heat environments.
  6. Wear appropriate PPE including safety goggles and protective clothing during operation.
  7. Dispose of used syringes according to local waste management regulations.



Specification
ModelPSY-30FH-P
Capacity30 mL (non-graduated)
MaterialHeat-resistant PBT (Polybutylene Terephthalate)
Temperature RangeUp to 180°C
Pressure RangeUp to 0.5 MPa (at 180°C)
Nozzle ConnectionLuer Lock (screw type)

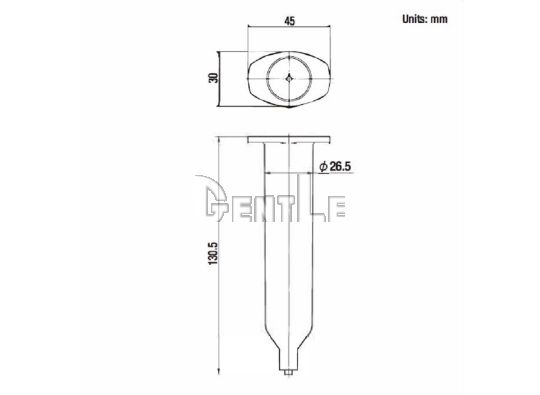

Dimensions130.5 × 45 × ø30 mm
WeightApprox. 22 g
Quantity per Set50 pcs
File Downloads
File Name
File Type
Download
MUSASHI 180℃ Heat-Resistant Syringe PSY-30FH-P_E
PDF
