marco_mtv
Modular Valves
- Low, medium viscosity modular valve
- Medium, high viscosity modular valve
- Brand
Products
請選擇分類
- All Products
- Pneumatic Series
- GENTLE Fittings
- GENTLE DC Fan Ionizer
- CONVUM Ltd.
- FUJIKURA
- FUJI LATEX Co., Ltd.
- KOGANEI Corporation
- iB series
- Air Cylinders, Hands
- Air Valves
- Air Filters, Regulators, Pressure Gauges
- Flow Rate Sensor Switches, Plachain Ducts, Pressure Switches
- Vacuum Equipment, Pads
- Electric Actuator
- Environmental Hygiene Equipment
- Static Electricity Removal
- Fluororesin Products
- Fixed Discharge Pump
- Medium Control Equipment
- Pulse Blow Series
- NKE Corporation
- TAKEX
- Dispensing Series
Features

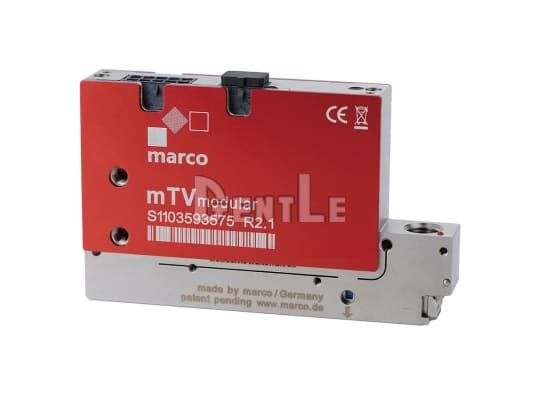

- marco modular valves drive together with a screw-in fluid body and an easy to fit valve seat make up a dispensing valve for metering a range of media from low viscosity fluids to high viscous or paste-like media. Media feed and dispensing are hermetically isolated from the valve drive.
- The main component of the modular valve drive is a piezo ceramic actuator. The movement of the actuator is transmitted to a rod which actuates the valve seat and opens or closes the integrated sealing seat to dispense the medium. Parts in contact with medium which become contaminated or worn can be exchanged easily and quickly.
Specification
| Model | Low, Medium Viscosity Modular Valve Drive | Medium, High Viscosity Modular Valve Drive | ||
|---|---|---|---|---|
| Viscosity range | 1 ~ 10,000 cps | 2,000 cps ~ paste-like | ||
| Dispensable liquids | Adhesives and adhesive components, liquid polymers and polymer solutions, solvents, lubricants such as oils and grease, dyes, aqueous solution | |||
| Max. media supply pressure | 7.5 MPa | |||
| Ambient temperature | < 45 °C | |||
