Features
- Ultra-fine thin-wall structure: Inner diameters down to 0.1 mm enable highly precise micro-spot and fine-line dispensing.
- Rigid stainless steel tube: Withstands pressure and deformation, ideal for consistent, long-duration applications.

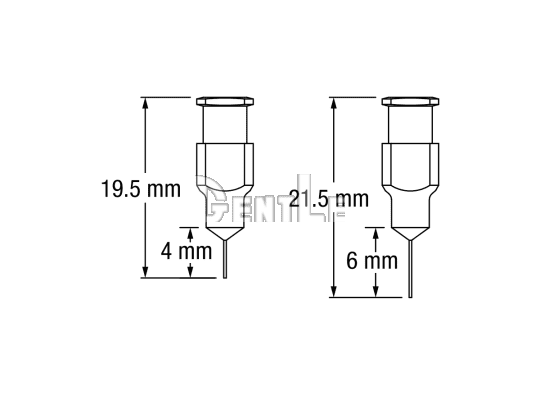

- Short-needle formats for tight areas: Choose 4mm or 6mm to handle small, narrow, or recessed dispensing spaces.
- Nickel-plated brass base: Precisely machined for stable mounting with most dispensing systems.
- Excellent fluid compatibility: Dispenses silver paste, optical adhesives, encapsulants, lubricants, and other high-viscosity microfluids.
Specification
| 4 mm | 6 mm | Outer Diameter | Inner Diameter (ø mm) | Quantity (pcs / set) | |
|---|---|---|---|---|---|
| Model | Model | ||||
| SNA-0.10N-4L-F | SNA-0.10N-6L-F | 0.2 | 0.1 | 1 | |
| SNA-0.20N-4L-F | SNA-0.20N-6L-F | 0.3 | 0.2 | 1 | |
| SNA-0.30N-4L-F | SNA-0.30N-6L-F | 0.4 | 0.3 | 1 | |
Note: Needle length can be customized upon request. Please contact us for more information.
