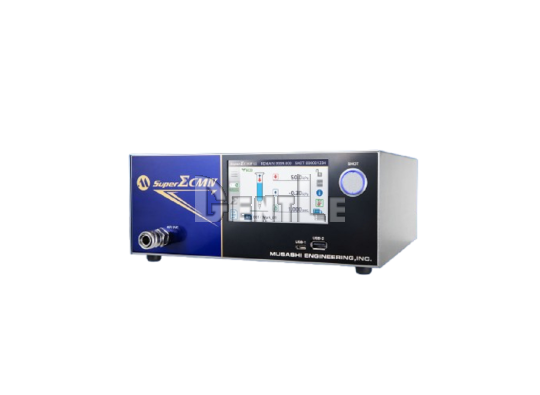

MUSASHI_SuperΣCM4

Full-Function Air-Pulse Dispenser

  • Brand MUSASHI Engineering
Features
  • Integrated CTR Temperature Control: Peltier-based system provides 0.1 °C fluid-temperature precision for consistent performance.
  • PAT Pulse Stabilization Circuit: Patented air-pulse technology maintains stable pressure and flow for ultra-precise dispensing.
  • 4.3″ Multilingual Color Display: Intuitive UI in Traditional/Simplified Chinese, English, and Japanese.
  • ECO/Sleep Energy Modes: Smart switching between Run, Eco, and Sleep to cut air use by up to 90% and power by 25%.
  • 30% Smaller Footprint & 400-Channel Memory: Compact design with space reduction, supporting 400 recipe slots for instant batch changeovers



 Σ3 Core Functions

  1. Auto Head Compensation: Instantly detects and corrects fluid-head changes caused by varying material levels, ensuring consistent shot volume every time.
    ⇒ In Generation 4, head-difference detection accuracy is improved for more precise compensation.

  2. Auto Vacuum Correction: Continuously adjusts vacuum pressure to optimal levels to prevent drips and bubbles, enhancing dispense accuracy and stability.
    ⇒ In Generation 4, vacuum stability and response speed are increased, minimizing interval-time effects.

  3. Auto Low-Level Warning: Precisely monitors remaining fluid in the syringe and issues dual-stage alerts to avoid production stops.
    ⇒ In Generation 4, near-empty detection accuracy is improved, with two warning levels: low-level alert and syringe-replacement notification.

Leveraging these Σ3 core functions significantly boosts dispensing yield and enables a truly smart production line.

Specification
ModelS-SIGMA-CM4-CTR-V5S-SIGMA-CM4-CTR-V2
Control MethodDigital microcomputer + pneumatic
Dispense ModesTimed / Manual
Dispense Pressure30 ~ 500 kPa5 ~ 200 kPa
Dispense Time0.001 ~ 9999.999 s
Vacuum Pressure0.0 ~ -5.0 kPa
Main Functions

Auto head comp., auto leak-prevent, auto low-level warning, α-compensation, low-level display comp.,

negative-pressure comp., dispense counter, stopwatch, interval dispense,condition compensation,

auto increment, auto slope, quick shot, date/time, operation log, pressure monitor, self-diagnosis,

ECO mode, Sleep mode, I/O mapping, password lock, unit switch (kPa/bar), valve alarm/error, air supply error,

exhaust error, negative pressure error, channel copy, param. backup

Channels400 CH
Power SupplyDC24V ± 10%
Power Consumption26W
Dimensions (WxDxH)W250 x D250 x H108 mm
Weight4.0 kg

※ Dispense performance depends on material viscosity and particle size.
