Features

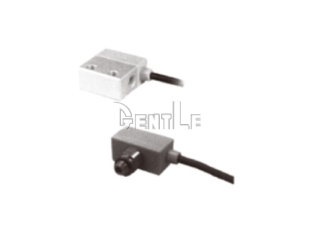

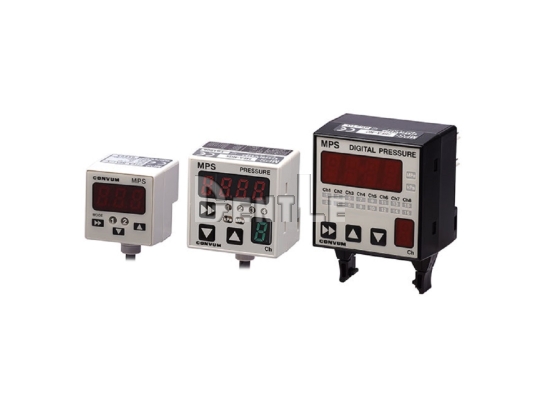

- Separated sensor head and display design: Separated sensor head and display design for flexible installation in vacuum, positive, and compound pressure applications. Enables easy adjustment and maintenance.
- Supports 1, 4, or 8 channel inputs: Supports 1, 4, or 8 channel inputs for centralized pressure monitoring with fewer wires.
- High-speed response: High-speed response ensures accurate feedback in fast control applications.
- CE marked: CE marked for compliance with European safety regulations.
- Wiring efficiency: Wiring is simplified as only the display connects to the PLC; sensor heads connect directly to the display.
※ Discontinuation Notice: MPS-71 / 74 / 78 Series discontinued.
Specification
| Item | Unit | MPS-71 | MPS-74 | MPS-78 | |
|---|---|---|---|---|---|
| Sensor Input Voltage | V | 1 ~ 5 | |||
| Number of Sensor Inputs | 1 | 4 | 8 | ||
| Ambient Temperature Range | ºC | 0 ~ 50 | |||
| Ambient Humidity Range | %RH | 35 ~ 85 (no condensation) | |||
| Current Consumption | mA | 45 | 75 | 100 | |
| Response Time | ms | ≤2 (average function selectable: 32, 128, 1024) | ≤5 | ≤ 5 (8 points output) (average function selectable: 32, 128, 1024) | |
| Protection Rating | IP40 | ||||
| Accessories Included | Mounting Brackets: L3, F3 | Mounting Brackets: L7, F7 | - | ||
| Net Weight (excluding cable) | g | 25 | 30 | 120 | |
