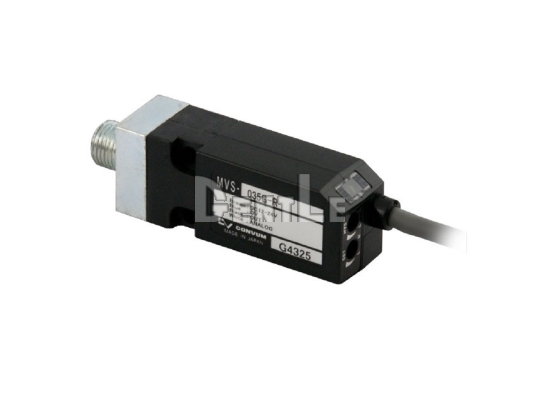

CONVUM MVS-035G Electronic Vacuum Pressure Sensor

• Vacuum pressure switch: The MVS-035G is an electronic vacuum pressure sensor for vacuum pressure checking and suction status confirmation.
• Compact and high-accuracy design: The compact body can be mounted on compatible ejector series, making it suitable for space-saving vacuum systems.
• Response time under 2 ms: With response time under 2 ms, the sensor detects vacuum pressure changes quickly for faster suction confirmation.
• 1 to 5V analog output: In addition to switch output, the MVS-035G provides 1 to 5V analog output for sending vacuum pressure changes to a control system.
• Adjustable vacuum setting and hysteresis: Vacuum setting and hysteresis can be adjusted with trimmers to match equipment suction conditions.

Q1: What is the MVS-035G?
A: The MVS-035G is an electronic vacuum pressure sensor for vacuum pressure checking, suction status confirmation, and ejector-mounted applications.

Q2: What is the pressure range of MVS-035G?
A: The pressure range is -2.7 to -101.2 kPa, and the factory setting value is -46.6 kPa.

Q3: What is the response time of MVS-035G?
A: The response time is less than 2 ms, making it suitable for applications that need quick vacuum pressure detection.

Q4: Does MVS-035G provide analog output?
A: Yes. The MVS-035G provides DC1 to 5V analog output. The analog output should be connected to an input resistance of 10kΩ or more.

Q5: What should be done if the analog output is not used?
A: If the analog output is not used, cut off the white lead wire and wrap it with insulating tape to prevent contact with other terminals.

Q6: Can the vacuum setting be adjusted?
A: Yes. The vacuum setting trimmer can be adjusted with the accessory screwdriver. Turning clockwise sets the vacuum degree toward -100.9kPa, and turning counterclockwise sets it toward 0kPa.

Q7: Can the hysteresis be adjusted?
A: Yes. Hysteresis is variable from 2 to 9%. Turning the hysteresis trimmer clockwise increases hysteresis, and turning it counterclockwise decreases hysteresis.

Q8: Which ejector series can MVS-035G be mounted on?
A: It can be mounted on compatible CVA2, CVF, CV4, MC22, MC72, CVR2, MPV3, and MPV6 series.
