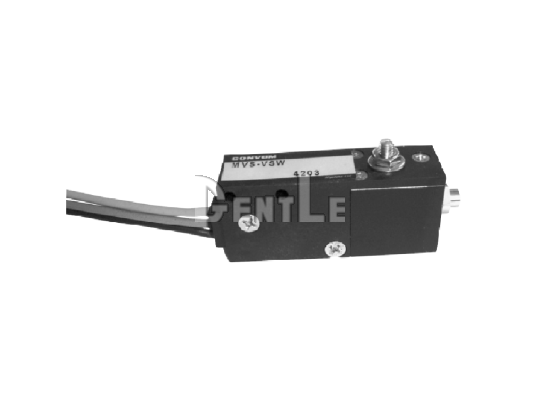

Mechanical Vacuum Pressure Switch
| Item | Unit | MVS-VSW | |
|---|---|---|---|
| Fluid | Air, non-corrosive gas, nonflammable gas | ||
| Pressure range | kPa | -28 ~ -68 | |
| Proof pressure | MPa | 0.5 | |
| Operating ambient temperature | ºC | 0 ~ 60 | |
| Operating humidity | %RH | 35 to 85 RH, no condensation | |
| Port size | Port for mounting on ejectors | ||
| Hysteresis | kPa | 15 ± 5 | |
| Protection structure | Limit switch section: IP67 | ||
| Cable length | mm | 300 | |
| Weight | g | 69 | |
Q1: What is the MVS-VSW Series?
A: The MVS-VSW is a mechanical vacuum pressure switch for confirming vacuum pressure status through contact output.
Q2: Which series is the MVS-VSW mainly used with?
A: The MVS-VSW is designed for CV4 ejector mounting and uses a port for ejector installation.
Q3: What is the pressure range of the MVS-VSW?
A: The pressure range is -28 to -68 kPa, with hysteresis of 15±5 kPa.
Q4: What contact arrangement does the MVS-VSW use?
A: The MVS-VSW uses a 1C contact arrangement, combining one normally open contact and one normally closed contact.
Q5: How are the wire colors assigned?
A: Black is common, blue is normally open, and red is normally closed.
Q6: What is the protection rating of the MVS-VSW?
A: The limit switch section has an IP67 protection structure.
Q7: What is the cable length of the MVS-VSW?
A: The cable length is 300 mm.
Q8: What accessories are included with the MVS-VSW?
A: Accessories include an M3×6 plate screw and a P-5 O-ring for installation.
