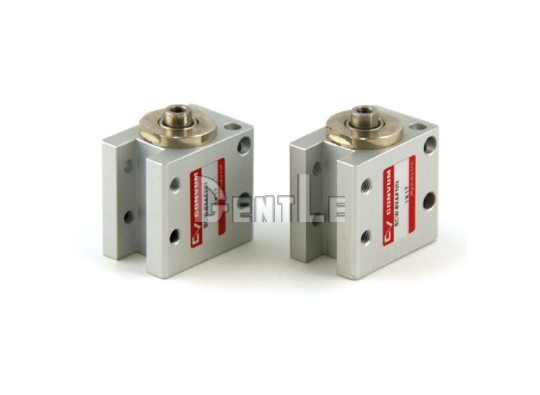

CONVUM SCW Ultra-Compact Block Cylinder

• Ultra-compact block body: The SCW Series uses a compact block cylinder design for small equipment and tight installation spaces.
• Double-acting operation: The series uses double-acting operation with non-lubricated compressed air for both extension and return motion.
• Two-side direct mounting: The rectangular body allows direct mounting from two sides, making installation more flexible for different equipment layouts.
• No-contact switch mountable: The SCW Series supports the SCW-S10 no-contact switch for cylinder motion detection across Φ4.5 to Φ10 bore sizes.
• Selectable rod-end thread: The rod end can be selected as either male thread or female thread to match linkage and mechanism requirements.

Q1: What is the SCW Series?
A: The SCW Series is an ultra-compact block cylinder with double-acting operation for compact pneumatic mechanisms.

Q2: What bore sizes and strokes are available?
A: The SCW Series is available in Φ4.5, Φ6, Φ8, and φ10 bore sizes, with standard strokes of 3, 4, 5, 6, 8, and 10 mm depending on bore size.

Q3: Can a switch be mounted on the SCW Series?
A: Yes. The SCW Series supports the SCW-S10 no-contact switch across Φ4.5 to Φ10 bore sizes.

Q4: What output type does the SCW-S10 switch use?
A: The SCW-S10 uses NPN open collector, normally open output. The red LED lights when output is ON.

Q5: How can the SCW Series be mounted?
A: The rectangular block body supports direct mounting from two sides, making it easier to fit different equipment layouts.

Q6: What rod-end thread options are available?
A: The rod end can be selected as male thread or female thread to match linkage and mechanism requirements.

Q7: What fluid does the SCW Series use?
A: The SCW Series uses non-lubricated compressed air. The maximum operating pressure is 0.6 MPa, and the minimum operating pressure is 0.2 MPa.

Q8: What is the protection rating of the SCW-S10 switch?
A: The SCW-S10 no-contact switch has an IP67 protection structure and uses a 1000 mm robot cable.
