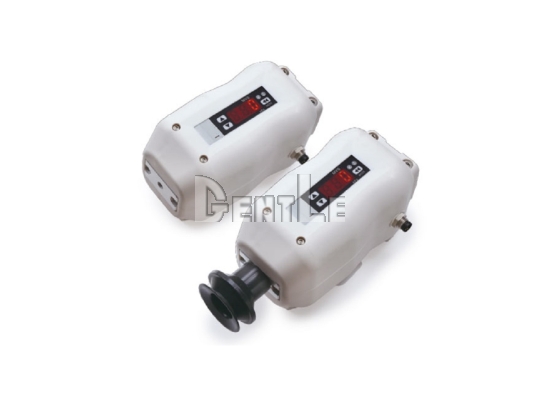

CONVUM SGE e•HAND Electric Suction Hand

• No compressed air required: built-in vacuum pump enables suction handling without air supply.
• Energy saving design: small type power consumption is 4W during adsorption (per catalog conditions).
• Applicable for robotic arms: designed as an end-effector for robot handling systems.
• Small and medium types: suction flow rate 0.3 L/min (small) and 2.0 L/min (medium).
• Vacuum port options: M5 (small) and M10 or G1/8 (medium) for flexible pad/adaptor setups.

Q1: What is the SGE e•HAND?
A: It is an electric suction hand with a built-in vacuum pump for suction handling.

Q2: What is the key advantage of SGE?
A: No compressed air is required, enabling hose-free automation as a robot end-effector.

Q3: Do I need an external vacuum generator or pump?
A: No. The vacuum pump is built into the SGE unit.

Q4: What sizes/types are available?
A: Small and medium types are available; the catalog also notes the medium type can be compatible with a balloon hand.

Q5: What is the difference between small and medium types?
A: Small type: 0.3 L/min suction flow and 260 g; medium type: 2.0 L/min suction flow for higher flow needs.

Q6: What vacuum port sizes are available?
A: Small type uses M5 (female thread); medium type offers M10 or G1/8 for pad/adaptor selection.

Q7: How is it powered and controlled?
A: The catalog states power via an M8 connector cable, vacuum ON/OFF switching, and suction confirmation output are available.

Q8: What applications is it suitable for?
A: Robot/robotic arm end-effector suction handling, especially when reducing air supply and tubing is desired.
