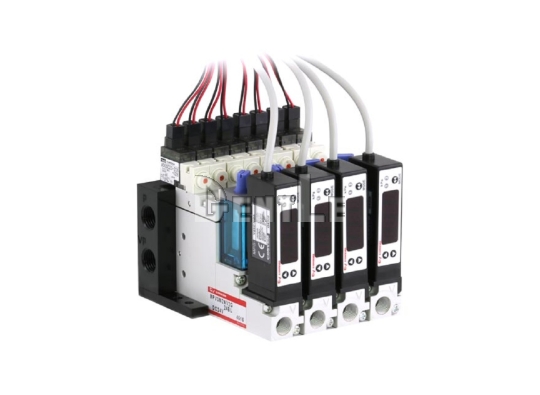

CONVUM MPV32 Modular Vacuum Switching Valve Unit

• Positive-pressure switching control: The internal valve is switched by positive pressure to control the vacuum flow path for stable vacuum switching in equipment systems.
• Integrated vacuum control functions: The unit combines a pressure sensor, filter, vacuum flow adjustment, and vacuum break flow adjustment in a single configuration.
• Supports manifold configurations: The series supports manifold setups of up to 8 stations, making it suitable for centralized vacuum source management in multi-point handling systems.
• Built with filter and sensor functions: The filter section helps keep debris from entering the unit, while the vacuum sensor turns on when the set vacuum level is reached.
• Suitable for vacuum handling control: The series is designed for vacuum pump-based transfer systems that require integrated vacuum supply, release, and flow control functions.

Q1: What is the MPV32 Series?
A: The MPV32 Series is a modular vacuum switching valve unit designed to control the vacuum flow path while integrating pressure sensing, filtration, vacuum flow adjustment, and vacuum break flow adjustment in one assembly.

Q2: How is MPV32 different from a standard single vacuum valve?
A: Instead of offering only a basic switching function, this series combines a pressure sensor, filter, vacuum flow adjustment, and vacuum break flow adjustment in one unit, making it more suitable for centralized vacuum control.

Q3: What functions are built into the MPV32 Series?
A: The series integrates a pressure sensor, filter, vacuum flow adjustment, and vacuum break flow adjustment to support vacuum holding and release control.

Q4: What is the difference between normally open and normally closed types?
A: The normally open type maintains vacuum when de-energized and stops when energized, while the normally closed type remains off when de-energized and generates vacuum when energized.

Q5: How many manifold stations can MPV32 support?
A: The MPV32 Series supports manifold configurations of up to 8 stations, which is suitable for multi-point handling and centralized vacuum source management.

Q6: What flow settings can be adjusted on this unit?
A: The MPV32 allows separate adjustment of the vacuum side flow and the vacuum break side flow, helping match suction and release timing to the application.

Q7: What should be checked before selecting MPV32?
A: It is recommended to confirm the vacuum supply method, compressed air conditions for vacuum break, operating pressure range, required manifold stations, and whether integrated sensing and filtration are needed.

Q8: What should be considered during piping installation?
A: The piping layout should provide stable vacuum and air supply conditions while minimizing leakage. If the piping distance is longer, the hose size should also be reviewed accordingly.
