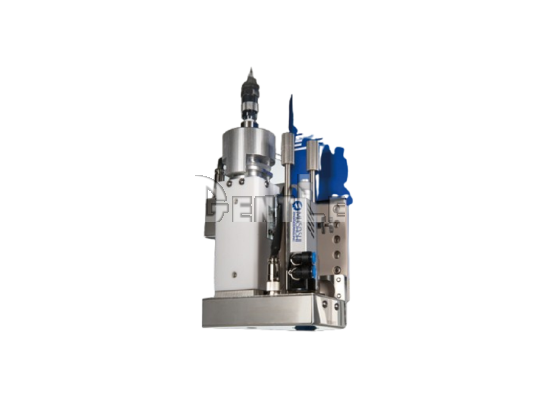

MUSASHI_HM-AeroJet
Ultra-Precise Non-Contact Jet Dispenser for Hot Melt Adhesives
- Brand
Products
請選擇分類
- All Products
- Pneumatic Series
- GENTLE Pneumatic Fittings
- GENTLE Ionizer
- CONVUM Ltd.
- FUJIKURA
- FUJI LATEX Co., Ltd.
- KOGANEI Corporation
- iB series
- Air Cylinders, Hands
- Air Valves
- Air Filters, Regulators, Pressure Gauges
- Flow Rate Sensor Switches, Plachain Ducts, Pressure Switches
- Vacuum Equipment, Pads
- Electric Actuator
- Environmental Hygiene Equipment
- Static Electricity Removal
- Fluororesin Products
- Fixed Discharge Pump
- Medium Control Equipment
- Pulse Blow Series
- NKE Corporation
- TAKEX
- Dispensing Series
Features
- Engineered for Hot Melt Precision: Ideal for high-viscosity, fast-curing PUR adhesives with smooth, string-free jetting.
- 3D Surface Dispensing: Accurately jets on curved, edge, and uneven parts—perfect alternative to manual tape application.
- Consistent Line Control: Synchro Speed™ maintains precise line width through speed changes and tight cornering.
- Z-Axis-Free Structure: Automatically adapts to surface height without lift adjustments, reducing setup time and errors.
- Dual PID Heating Modules: Stable material flow between 30°C–180°C ensures reliable adhesive performance.
- Smart Integration-Ready: Equipped with RS-232C, LED digital interface, and multi-stage I/O for seamless automation.
Specification
| Model | HOTMELT AEROJET | ||
|---|---|---|---|
| Compatible Materials | Reactive hot melt adhesives (PUR) | ||
| Jetting Frequency | Based on controller settings (supports high-frequency stable output) | ||
| Dispensing Modes | LINE/MAN, LINE/SET, DOT/MAN, DOT/SET | ||
| Temperature Range | 30–180°C (PID control, dual heating modules) | ||
| Syringe Capacity | 30 mL | ||
| Interface | LED digital display, RS-232C, multi-language I/O control |
※ Performance depends on adhesive viscosity, temperature, and particle properties. For best results, use with MUSASHI automation systems.
