Features
- Flexible Volume Range: Dispenses 0.0001–7.3000 mL to meet both fine and high-flow needs.
- Dual-Component Ready: Optional mixing pumps ensure synchronized, stable two-part dispensing.
- Pulse-Free Output: Plunger-driven structure delivers long-term dispensing stability.
- Smart Control System: 400-channel memory with self-diagnostics, error logging, and condition management.
- Versatile Container Compatibility: Supports MUSASHI syringes, cartridges (170–340mL), and pressure tanks.
- Certified for Automation: CE and RoHS2 compliant, built for seamless integration with smart factory lines.
Specification

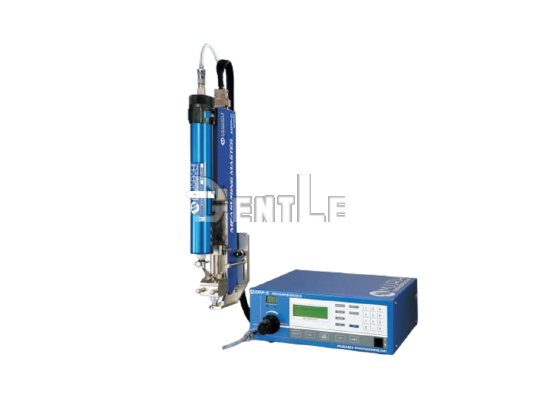

| Model | MPP-5-H-M | ||
|---|---|---|---|
| Control Method | Volumetric + Plunger Drive | ||
| Dispense Volume | 0.0001 – 7.3000 mL (based on selected pump head) | ||
| Supported Fluid Viscosity | Approx. 1 – 100,000 mPa·s (reference range) | ||
| Applicable Fluids | Lubricants, encapsulants, UV adhesives, dual-component resins | ||
| Communication | D-sub 25-pin I/O terminal | ||
| Compatible Containers | 50–70mL syringes, 170–340mL cartridges, pressure tanks | ||
| Channel Memory | 400 channels | ||
| Power Supply | AC100–240V, 50/60Hz, 75W |
※ Dispensing performance may vary depending on fluid viscosity, specific gravity, and particle size. For best results, use with genuine MUSASHI pump heads and control units.
