Features
- 4× Faster Dispensing Performance: Speeds up dispensing cycles, reducing process time and boosting productivity.
- High-Torque Screw Drive: Engineered for thick and filler-containing fluids, delivering stable, clog-free dispensing.
- Supports Particle-Filled Materials: Ideal for thermal compounds, gap fillers, and resin adhesives with solid content.
- Upgraded Durable Needle Design: Enhanced wear resistance extends service life and reduces maintenance needs.
- Precision at High Speeds: Maintains bead shape and line width even during fast operation.
- Built-in Suck-Back Mechanism: Prevents dripping and stringing, keeping the work area clean.
- Automation-Ready Interface: D-sub 25-pin I/O terminal enables easy integration into various production platforms.
Specification

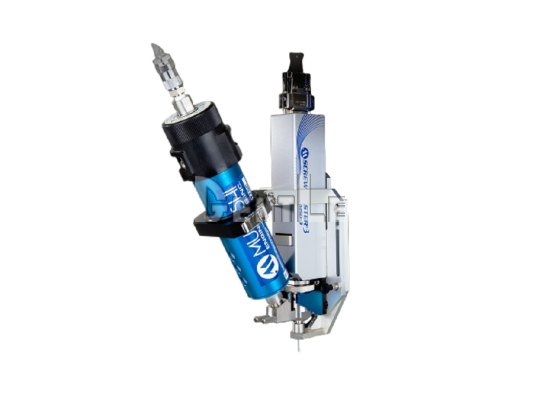

| Model | SCREW MASTER 3 (High-Flow Type) | |||
|---|---|---|---|---|
| Dispensing Mechanism | High-precision screw dispensing (optimized for high flow) | |||
| Min. Dispensing Diameter | ø 0.15mm (based on solder paste) | |||
| Supported Viscosity | Medium to high-viscosity materials with particles (depends on material and settings) | |||
| Pressure Range | 0.01 – 0.70 MPa (based on container and fluid properties) | |||
| Suck-Back Function | Yes | |||
| Compatible Containers | Cartridges | |||
※ Actual dispensing results may vary depending on fluid viscosity, density, and system settings. For optimal performance, use with genuine MUSASHI controllers and accessories.
