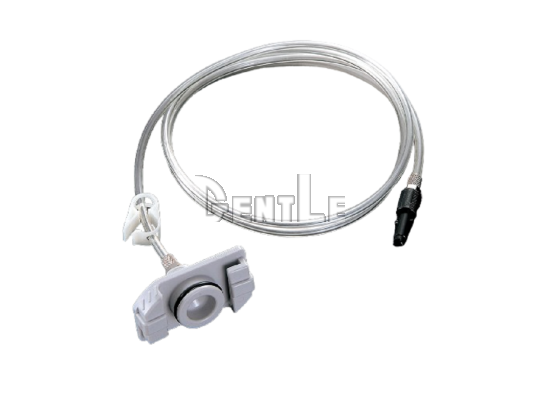

AT-E-H-PC Adapter Tube (with Stopper / Plastic Connector)
- Brand
Products
請選擇分類
- All Products
- Pneumatic Series
- GENTLE Pneumatic Fittings
- GENTLE Ionizer
- CONVUM Ltd.
- FUJIKURA
- FUJI LATEX Co., Ltd.
- KOGANEI Corporation
- iB series
- Air Cylinders, Hands
- Air Valves
- Air Filters, Regulators, Pressure Gauges
- Flow Rate Sensor Switches, Plachain Ducts, Pressure Switches
- Vacuum Equipment, Pads
- Electric Actuator
- Environmental Hygiene Equipment
- Static Electricity Removal
- Fluororesin Products
- Fixed Discharge Pump
- Medium Control Equipment
- Pulse Blow Series
- NKE Corporation
- TAKEX
- Dispensing Series
Features
- Lightweight plastic connector: Compatible with most dispensing controllers; reduces load and improves flexibility.
- Stopper-lock structure: Prevents syringe twisting or loosening to maintain high accuracy.
- Tool-free plug-and-play: Enables fast, easy installation and replacement without tools.
- Dual OD options (Ø4 / Ø6): Flexible for various machine configurations and control unit types.
- High-sealing tube + fluororubber O-ring: Ensures airtight sealing and chemical resistance for high-precision dispensing.
- Customizable tube length: Available in 0.5 m increments to match your workspace needs.
Specification
| Syringe Capacity (mL) | Model (OD Ø4 Type) | Model (OD Ø6 Type) | Tube Length (m) | ||
|---|---|---|---|---|---|
| 3 mL | AT-3E-H-P4C-1.0M | AT-3E-H-P6C-1.0M | 1m | ||
| 5 mL | AT-5E-H-P4C-1.0M | AT-5E-H-P6C-1.0M | 1m | ||
| 10 mL | AT-10E-H-P4C-1.0M | AT-10E-H-P6C-1.0M | 1m | ||
| 20 ~ 70 mL | AT-50E-H-P4C-1.0M | AT-50E-H-P6C-1.0M | 1m | ||
