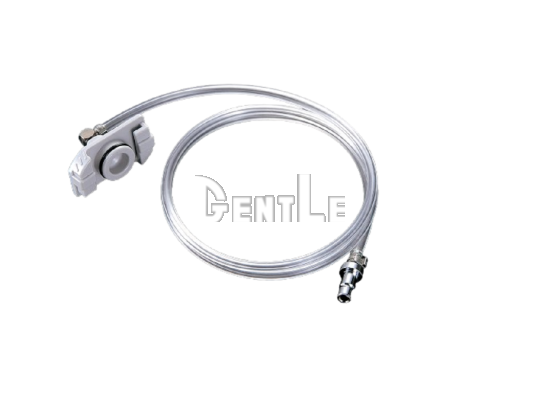

Features
- Side-outlet tube layout: Designed for low-profile routing in tight multi-axis or robotic dispensing setups.
- Stopper lock integration: Prevents syringe twist or disconnection—ensures air-tight, stable performance.
- Tool-free quick connect: Installs instantly without tools, reducing downtime and enhancing flexibility.
- High-performance sealing system: Uses POM body, special elastomer (polyurethane for SIGMA), and fluororubber O-ring to resist chemicals and pressure.
- Supports multiple syringe sizes: Fits 5–70 mL syringes; available in standard 1 m or customizable in 0.5 m increments.
Specification
| Syringe Capacity (mL) | Model (with Stopper, Side Port) | Tube Length (m) | Compatible Dispensers | ||
|---|---|---|---|---|---|
| 5 mL | AT-5E-H-S-1.0M | 1m | -- | ||
| 10 mL | AT-10E-H-S-1.0M | 1m | -- | ||
| 20 ~ 70 mL | AT-50E-H-S-1.0M | 1m | -- | ||
| AT-50E-H-S-SIGMA-1.0M | 1m | SIGMA | |||
