Features

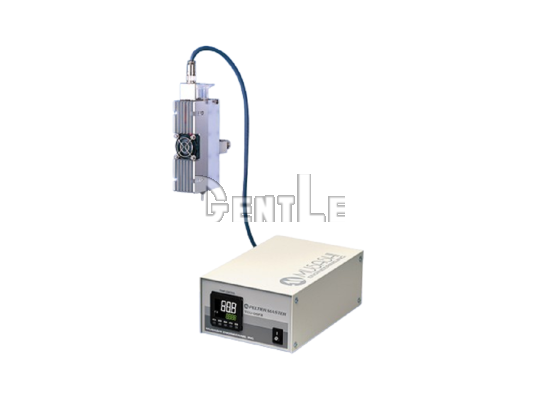

- Dual-mode thermal control: PELTIER-based heating and cooling for stable fluid temperature and flow.
- No air supply needed: Fan-cooled design eliminates the need for compressed air, simplifying installation.
- Stable viscosity management: Prevents flow fluctuation caused by temperature shifts.
- Modular configuration: Controller and thermal block are separate; supports syringes from 5 to 50 mL.
- Global safety certified: CE-marked and RoHS2-compliant—safe and eco-friendly for automated lines.
Specification
| TCU-05FIII / TBP-F (Fan Type) | |||
|---|---|---|---|
| Component | Model | Weight | |
| Temperature Controller | TCU-05F-3-MU | 1.8 kg | |
| Thermal Block | 5 mL | TBP-SY05M-F | 230 g |
| 10 mL | TBP-SY10M-F | 280 g | |
| 20 mL | TBP-SY20M-F | 400 g | |
| 30 mL | TBP-SY30M-F | 500 g | |
| 50 mL | TBP-SY50M-F | 600 g | |
