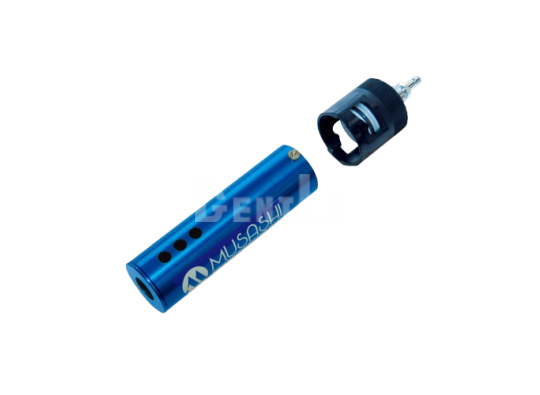

Features
- Tool-free change system: Cartridges can be replaced in seconds without tools.
- Supports large-volume use: 100 mL, 170 mL, and 340 mL sizes fit daily needs.
- High-strength aluminum holder: Precision-machined for long-term durability.
- Optional hook caps: Standard or hook-type cap available for flexible setup.
- Modular spare parts: Each component sold separately for easy maintenance and inventory.
Specification
| Barrel Cartridge Set | |||
|---|---|---|---|
| Capacity | Model | Weight | Min. Order Qty |
| 100 mL | CS-100C | 265 g | 1 set |
| 170 mL | CS-170C | 355 g | 1 set |
| 340 mL | CS-340C | 455 g | 1 set |
| 100 mL with hook | CS-100C-HK | 275 g | 1 set |
| 170 mL with hook | CS-170C-HK | 345 g | 1 set |
| 340 mL with hook | CS-340C-HK | 465 g | 1 set |
※ Each set includes a cartridge holder and a cartridge cap.
| Barrel Cartridge Components | |||||
|---|---|---|---|---|---|
| Capacity | Item | Model | Material | Min. Order Qty | |
| 100 mL | Cartridge Cap | Without hook | CC-P-001-1 | -- | Select one |
| With hook | CC-P-001-2 | -- | |||
| Cartridge Holder | CH-100C | Aluminum alloy | 1 | ||
| 170 mL | Cartridge Cap | Without hook | CC-P-001-1 | -- | Select one |
| With hook | CC-P-001-2 | -- | |||
| Cartridge Holder | CH-170C | Aluminum alloy | 1 | ||
| 340 mL | Cartridge Cap | Without hook | CC-P-001-1 | -- | Select one |
| With hook | CC-P-001-2 | -- | |||
| Cartridge Holder | CH-340C | Aluminum alloy | 1 | ||
