Features

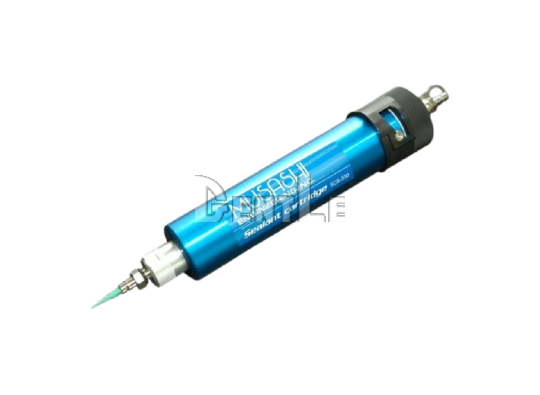

- Supports 330mL sealant tubes: No transfer needed—ready for direct use.
- Quick-change modular structure: Tool-free replacement of key components.
- Automation & manual compatible: Fits various production workflows.
- Multiple tip adapters available: Choose from TB, S, TR, TS, and more.
- Sealed & durable design: Fluororubber O-ring, anodized aluminum, and stainless steel construction.
Specification
| Sealant Cartridge Set | |||
|---|---|---|---|
| Item | Model | Weight | Min. Order Qty |
| Sealant cartridge (without hook) | SCS-300 | 570 g | 1 set |
| Sealant cartridge (with hook) | SCS-300-HK | 580 g | 1 set |
※ Includes cartridge cap, holder, O-ring, tip adapter, and needle adapter.
| Individual Components | ||||
|---|---|---|---|---|
| Item | Model | Material | Min. Order Qty | |
| Cartridge cap | Without hook | SCS-P-001-1 | PBT, Polyacetal, Stainless steel, Brass, NBR, Fluororubber | 1 |
| With hook | SCS-P-001-2 | 1 | ||
| Cartridge holder | SCS-P-002-1 | Aluminum alloy (anodized), Stainless steel | 1 | |
| O-ring | ORG-20-V-B-1 | Fluororubber | 1 | |
| Needle adapter | No.11 | P-NADP-11 | Brass (nickel plated) | 1 |
| Consumables / options | ||||
|---|---|---|---|---|
| Item | Model | Material | Min. Order Qty | |
| Tip Adapter | Type TB | SCS-P-004-1 | Aluminum alloy (anodized), Fluororubber | 1 |
| Type S | SCS-P-004-3 | 1 | ||
| Type TR | SCS-P-004-5 | 1 | ||
| Type TS | SCS-P-004-4 | 1 | ||
| Type MI | SCS-P-004-6 | 1 | ||
| Type MO | SCS-P-004-7 | 1 | ||
| Type C | SCS-P-004-8 | 1 | ||
| Packing | No. 23 | P-PKG-23 | Fluororubber | 1 |
| No. 15 | P-PKG-15 | 1 | ||
| Seal Spring | For cartridge cap | P-SSP-1 | Stainless steel | 1 |
| Seal Retainer | For cartridge cap | SCS-P-00-1C | Polyacetal | 1 |
| Screw | No. 17 | P-SCW-17 | Stainless steel | 1 |
| O-Ring | Ø20 Material V Color B #1 | ORG-20-V-B-1 | Fluororubber | 1 |
| Ø16 Material V Color B #1 (only for TS) | ORG-16-V-B-1 | 1 | ||
| Ø14 Material V Color B #1 (only for TS) | ORG-14-V-B-1 | 1 | ||
| Cartridge Cap Hook | SCS-P-005-1 | -- | 1 | |
