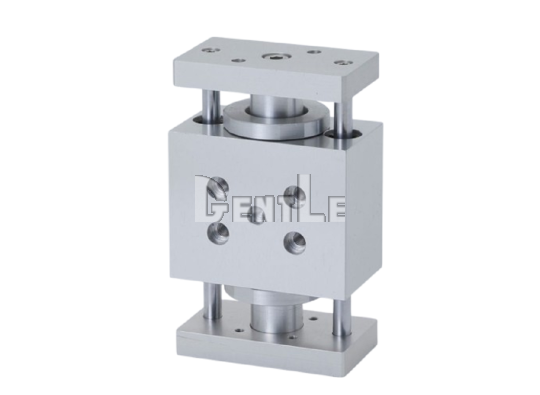

Compact Low-Friction Double-Action BF Cylinder
| Item | Spec. |
|---|---|
| Product type | Compact low-friction double-action BF cylinder |
| Bearing type | Linear ball bearing |
| Operating style | Double action |
| Standard models | LC-10-5 LC-20-20 LC-31.5-35 |
| Cylinder diameter | 10, 20, and 31.5 mm |
| Stroke | 10 mm bore: 5 mm 20 mm bore: 20 mm 31.5 mm bore: 35 mm |
| Working fluid | Clean compressed air |
| Working pressure range | 0.01 to 0.5 MPa |
| Working temperature range | 0 to 60 ℃ |
| Mount type | None |
| Main applications | Precision press control for lamination of ultrathin plates, tension control for film, paper, and fiber, and high-precision load control for lens polishing and crimping machines |
Q1: What is the FUJIKURA LC Series?
A: The LC Series is a compact low-friction double-action cylinder using a BF diaphragm and linear ball bearings.
Q2: Why does the LC Series have low operating resistance?
A: Since there is no rod seal, it provides the smallest resistance among double-action types.
Q3: What standard models are available?
A: Standard models are LC-10-5, LC-20-20, and LC-31.5-35.
Q4: What bore and stroke combinations are available?
A: Available combinations are 10mm bore with 5mm stroke, 20mm bore with 20mm stroke, and 31.5mm bore with 35mm stroke.
Q5: What is the working pressure range?
A: The working pressure range is 0.01 to 0.5MPa.
Q6: What bearing type is used?
A: A linear ball bearing is used.
Q7: What do B0 and B1 mean?
A: B0 indicates no seals, while B1 indicates seals on both sides.
Q8: Can the LC Series operate smoothly after a long stop?
A: Yes. Smooth operation is possible even after a long stop.
Q9: Is a clean-room specification available?
A: Yes. The BF diaphragm can be manufactured with fluorine rubber for clean-room specifications.
Q10: What applications is the LC Series suitable for?
A: It is suitable for ultrathin plate lamination, film, paper and fiber tension control, and high-precision load control for lens polishing and crimping machines.
