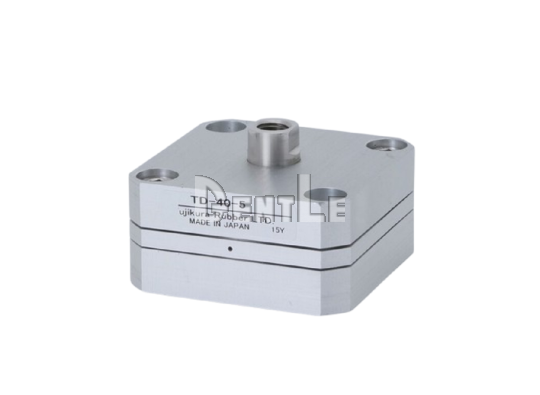

FUJIKURA TD Ultra-Thin Double-Action Cylinder

• Ultra-thin body design: The thin structure is suitable for equipment with limited installation space.
• Double-action control: The double-action design controls cylinder movement through air supplied to both sides.
• Extremely low air leakage: The BF diaphragm keeps air leakage extremely low.
• Excellent minute-pressure response: The cylinder responds well to small pressure variations.
• Smooth starting after long intervals: Smooth starting is maintained even after an extended stop.

Q1: What is the FUJIKURA TD Series?
A: The TD Series is an ultra-thin double-action diaphragm cylinder designed for limited installation spaces.

Q2: Is the TD Series classified as a BF cylinder?
A: No. FUJIKURA classifies the TD Series as a thin diaphragm type cylinder, although its drive section uses a BF diaphragm.

Q3: What standard models are available?
A: Standard models are TD-20-3, TD-30-5, and TD-40-5.

Q4: What bore sizes are available?
A: Bore sizes of 20, 30, and 40mm are available.

Q5: What strokes are available?
A: TD-20-3 has a 3mm stroke. TD-30-5 and TD-40-5 have 5mm strokes.

Q6: What operating style does the TD Series use?
A: The TD Series uses double-action operation.

Q7: What is the working pressure range?
A: The working pressure range is 0.02 to 0.5MPa.

Q8: What working fluid is used?
A: The TD Series uses clean compressed air.

Q9: What is the working temperature range?
A: The working temperature range is 0 to 60℃, with no freezing.

Q10: What applications is the TD Series suitable for?
A: It is suitable for applications where air leakage is not allowed or sensitive response to minute pressure variations is required, including high-sensitivity actuators, pressure rollers, dancer rollers, clean equipment, polishing equipment, constant-output precision actuators, and emergency actuators.
