IEI_ACCURA 8DX

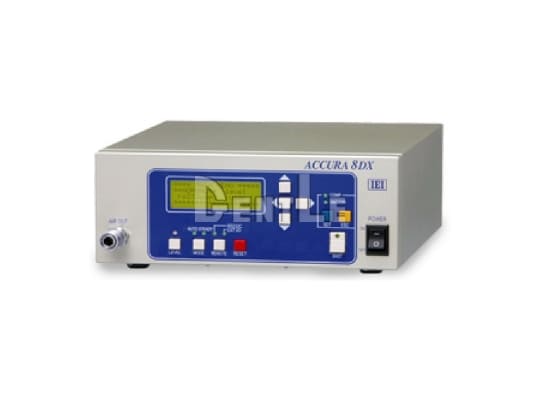

ACCURA 8DX

  • Brand IEI Iwashita Engineering Inc.
Features
  • Upgraded compensation: Real-time pressure balancing without sampling.
  • Volume monitoring: Displays remaining material for line efficiency.
  • Fully digital system: Consistent vacuum and pressure regulation.
  • 500-channel memory: Supports complex multi-material production.
  • Data logging: Exportable logs for creating fine-tuned control curves.
Specification
ModelACCURA 8DXACCURA 8DXL
(Low Pressure)
Air Pressure5 ~ 490 kPa5 ~ 196 kPa
Dispense Time0.015 ~ 99.999 s
Material ViscosityLow to highLow
Channel Memory500 CH
Power ConsumptionMax. 12VA
DimensionsW250 x D220 x H100 mm
Weight4.5 kg
