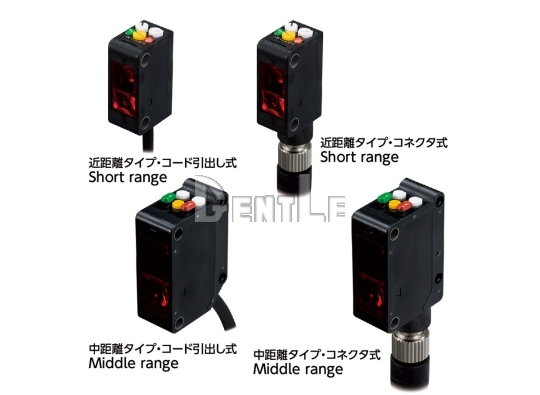

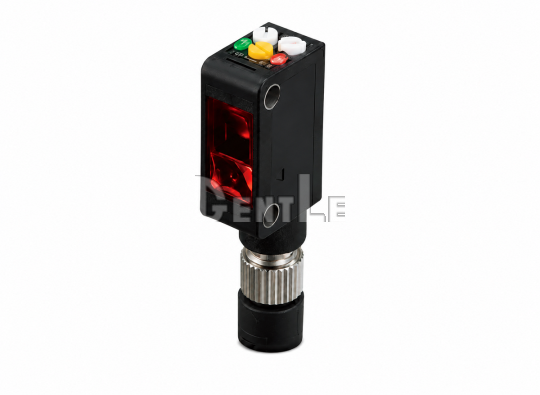

BGS/FGS Switchable Photo Sensors
| Item | Spec. |
|---|---|
| Product type | BGS/FGS switchable photo sensor |
| Detection method | Fixed-field reflective |
| Types | Short range, middle range |
| Short-range detecting distance | 10–30 mm, 10–40 mm, 10–50 mm, 10–100 mm |
| Middle-range detecting distance | 10–100 mm, 10–150 mm, 10–200 mm, 20–300 mm |
| Power supply | 12–24VDC, ripple 10% or less |
| Current consumption | Short-range models: 16 mA or less; middle-range models: 18 mA or less |
| Operation mode | Light-ON / Dark-ON selectable |
| Detection mode | BGS / FGS selectable |
| Light source | Four-element red LED, 660 nm |
| Response time | 0.5 ms or less |
| Hysteresis | 5% of detecting distance or less |
| Operation indicator | Orange LED |
| Stability indicator | Green LED |
| Case material | PBT |
| Lens material | Polycarbonate |
| Ambient light | 5,000 lx or less |
| Operating temperature | −25 to +55°C, non-freezing |
| Ambient humidity | 35–85% RH, non-condensing |
| Protective structure | IP67 |
Specification notes
Q1: What is the TAKEX DLN Series?
A: The DLN Series consists of fixed-field reflective photo sensors with selectable background suppression and foreground suppression operation.
Q2: What is the maximum detecting distance?
A: The maximum detecting distance is 300 mm, with multiple models covering 30 to 300 mm ranges.
Q3: When should BGS mode be used?
A: BGS mode is suitable when the background is located beyond the set sensing distance.
Q4: When should FGS mode be used?
A: FGS mode is suitable when a stable background is available and the sensor detects changes caused by a target in front of it.
Q5: Does the DLN Series provide both NPN and PNP outputs?
A: Yes. Both outputs are provided, but they must not be used simultaneously.
Q6: What is the response time?
A: The response time is 0.5 ms or less.
Q7: What light source is used?
A: The series uses a 660 nm four-element red LED.
Q8: Does the DLN Series include mutual interference prevention?
A: Yes. Automatic mutual interference prevention is provided for installations with up to two adjacent sensors, subject to installation conditions.
Q9: What connection types are available?
A: Attached-cable and M8 connector models are available.
Q10: What applications are suitable for the DLN Series?
A: Applications include silicon wafer detection, wafer carrier detection, printing processes, CD presence detection, tile inspection, bobbin detection, and other object presence or position checks.
