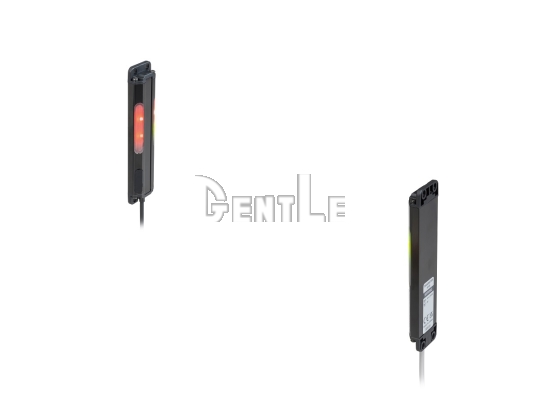

5.55 mm Pitch Sequential Array Scanning Light Curtain
| Item | Spec. |
|---|---|
| Product type | Sequential array scanning light curtain sensor |
| Model | SSCA-T0525 |
| Detection method | Through beam |
| Scanning method | Sequential array scanning |
| Detecting distance | 150–500 mm |
| Min. detection object | Opaque object Φ6 mm or larger |
| Number of optical axes | 20 |
| Beam interval | 5.55 mm |
| Detection width | 105 mm |
| Power supply | 12–24VDC ±10% |
| Control output | PhotoMOS, configurable for NPN or PNP |
| Operation modes | Four selectable combinations |
| Operation settings | Light-ON/Dark-ON and all-axis/any-axis |
| Response time | 15 ms or less |
| Light source | 870 nm infrared LED |
| Transmitter indicator | Green power indicator |
| Receiver indicators | Green power indicator, orange operation indicator |
| Selectors | Light-ON/Dark-ON and all-axis/any-axis |
| Case material | Aluminum |
| Cap material | Glass-fiber-reinforced PBT |
| Ambient light | 5,000 lx or less |
| Operating temperature | −25 to +55°C, non-freezing |
| Ambient humidity | 35–85% RH, non-condensing |
| Protective structure | IP62 |
| Weight | Approx. 110 g each for transmitter and receiver |
Specification notes
Q1: What is the TAKEX SSCA-T0525?
A: SSCA-T0525 is a through-beam light curtain using sequential array scanning for detecting thin, small, and randomly positioned passing objects.
Q2: What is the beam interval?
A: The sensor has 20 optical axes with a 5.55 mm beam interval.
Q3: What is the detection width?
A: The detection width is 105 mm.
Q4: What is the detecting distance?
A: The specified transmitter-to-receiver installation range is 150–500 mm.
Q5: What is the minimum detectable object?
A: It detects opaque objects Φ6 mm or larger and is suitable for thin objects such as business cards and postcards.
Q6: Does SSCA-T0525 support NPN and PNP output?
A: Yes. Its PhotoMOS output can be configured for either NPN or PNP operation through the output wiring.
Q7: What operation modes are available?
A: Light-ON/Dark-ON and all-axis/any-axis conditions can be combined to provide four selectable operation settings.
Q8: What is the response time?
A: The response time is 15 ms or less.
Q9: Does SSCA-T0525 require a synchronization line?
A: No. No additional synchronization line is required between the transmitter and receiver.
Q10: What applications are suitable for SSCA-T0525?
A: It is suited to thin sheet materials, business cards, postcards, and small workpieces passing through varying positions.
