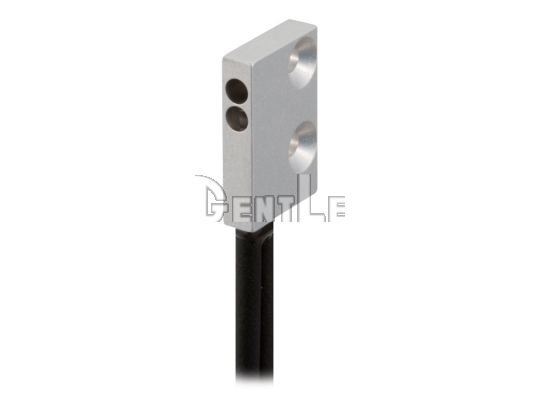

TAKEX FAL-R5SYBC Side-Edge Reflective Fiber Optic Sensor

• Side-edge reflective sensing: The reflective configuration directs the sensing axis from the side edge of the flat head, supporting lateral detection without an opposing fiber head.
• Ultra-slim flat construction: The low-profile sensing head fits narrow or shallow spaces where conventional protruding fiber heads may be difficult to install.
• Up to 300 mm detection: Detecting distance reaches up to 300 mm with the F100R amplifier in long-range mode, with additional ranges available according to amplifier and operating mode.
• Direct flush mounting: The sensing head installs directly without a dedicated mounting bracket and supports flush installation to reduce protrusion and accidental workpiece contact.
• R1 free-cutting fiber: The 2 m free-cutting fiber supports an allowable bending radius of R1 for flexible routing inside compact machinery.

Q1: What is TAKEX FAL-R5SYBC?
A: FAL-R5SYBC is an ultra-slim flat reflective fiber optic unit with side-edge sensing for narrow, shallow, or laterally oriented installations.

Q2: What detection method does FAL-R5SYBC use?
A: It uses a reflective detection method with transmitting and receiving optics located on the same sensing side.

Q3: What is the maximum detecting distance of FAL-R5SYBC?
A: The maximum detecting distance is 300 mm when paired with the F100R amplifier in long-range mode.

Q4: What does side-edge view mean on FAL-R5SYBC?
A: The sensing axis exits from the side edge of the flat sensing head, allowing lateral object detection in compact equipment layouts.

Q5: Which TAKEX fiber amplifiers are compatible with FAL-R5SYBC?
A: Compatible amplifiers include F100R, F70AR, F70R, F80R, F85RN, and XF12R-A.

Q6: How long is the FAL-R5SYBC fiber cable?
A: The fiber cable is 2 m long and uses a free-cutting design for adjustment to the required installation length.

Q7: What is the allowable bending radius of FAL-R5SYBC?
A: The allowable bending radius is R1, supporting flexible routing in compact and space-constrained equipment.

Q8: What is the ambient temperature range of FAL-R5SYBC?
A: The ambient temperature range is −40 to +70°C under non-freezing and non-condensing conditions.

Q9: Does FAL-R5SYBC provide NPN or PNP output?
A: No. FAL-R5SYBC is a fiber optic unit and does not provide an electrical output by itself. NPN or PNP output depends on the connected fiber amplifier.

Q10: What applications are suitable for FAL-R5SYBC?
A: It is suitable for object presence, position, and lateral detection in compact automation equipment where single-side reflective sensing and limited installation depth are required.
