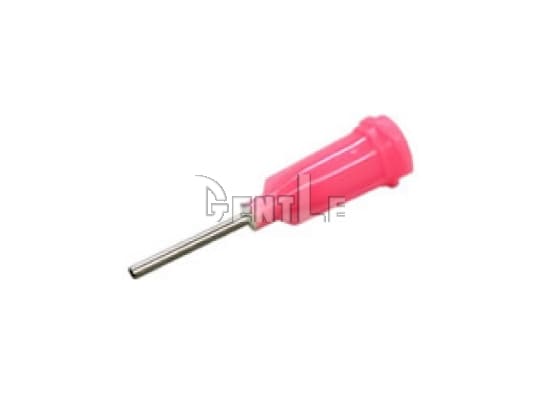

IEI_PNC

Plastic Needles

Needle length: 13mm.
Needle material: Stainless steel.
Body material: Polypropylene.

Brand

Add to Inquiry Cart

Features
Specification
Related Products

Features

Economical, disposable needles.

Specification

Measurement unit (mm)

Gauge		Needle Length 13 mm			Nozzle OD (ø)	Nozzle ID (ø)	MOQ (pcs/set)
Gauge		Code		Model	Nozzle OD (ø)	Nozzle ID (ø)	MOQ (pcs/set)
15		1305315		PNC-15G-13	1.82	1.60	20
16		1305316		PNC-16G-13	1.82	1.37	20
17		1305317		PNC-17G-13	1.64	1.20	20
18		1305318		PNC-18G-13	1.50	1.04	20
19		1305319		PNC-19G-13	1.27	0.84	20
20		1305320		PNC-20G-13	1.05	0.70	20
21		1305321		PNC-21G-13	0.91	0.60	20
22		1305322		PNC-22G-13	0.82	0.51	20
23		1305323		PNC-23G-13	0.71	0.41	20
24		1305324		PNC-24G-13	0.64	0.34	20
25		1305325		PNC-25G-13	0.56	0.31	20
26		1305326		PNC-26G-13	0.51	0.26	20
27		1305327		PNC-27G-13	0.41	0.21	20
28		1305328		PNC-28G-13	0.39	0.19	20
30		1305330		PNC-30G-13	0.31	0.16	20
32		1305332		PNC-32G-13	0.26	0.10	20
