Polarized retroreflective fiber optic unit for transparent object detection

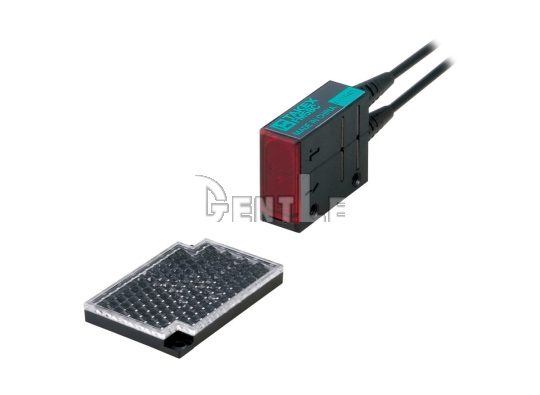

TAKEX FM5BC is a polarized retroreflective fiber optic unit for reliable detection of transparent objects such as glass bottles and plastic films.
It provides a 100 to 1,500 mm detecting range, 2 m free-cutting fiber, R25 bending radius, and IP66 protection.

Brand

Add to Inquiry Cart

Features
Specification
FAQ

Features

Reliable transparent object detection: Light passes through the transparent object twice using the reflector, allowing small changes in light intensity to be detected for glass bottles and plastic films.
Polarized retroreflective sensing: The polarized retroreflective method also provides stable detection of objects with specular surfaces.
100 to 1,500 mm detecting range: The listed detecting range is 100 to 1,500 mm for flexible placement of the sensing head and reflector.
Simplified single-side fiber routing: The opposite side uses a reflector, so fiber routing is required only on the sensing side compared with a through-beam configuration.
IP66 protection: The unit has an IP66 protection rating and includes a dedicated reflector, mounting bracket, and FA500 fiber cutter.

Specification

Item	Spec.
Model	FM5BC
Product type	Transparent object detection fiber optic unit
Detection method	Polarized retroreflective
Environmental feature	Ordinary temperature
Tip appearance	Square
Detecting distance	100 to 1,500 mm
Fiber optic cable length	2 m, free-cutting
Ambient temperature	−25 to +55°C
Protection rating	IP66
Sensing head material	ABS
Fiber covering material	Polyethylene
Fiber core material	Plastic
Tightening torque	0.54 N·m or less
Applicable amplifiers	F70AR, F70R, F80R, F85RN

Specification notes

Transparent object detection: Light passes through the transparent object twice via the reflector, allowing the unit to detect the resulting change in light intensity.
Detecting range: The series lineup specifies a 100 to 1,500 mm detecting range. Actual performance depends on the fiber amplifier and target conditions.
Reflector configuration: FM5BC is a retroreflective fiber optic unit and requires the dedicated reflector supplied with the product.

FAQ

Q1: What is TAKEX FM5BC?
A: FM5BC is a polarized retroreflective fiber optic unit designed for detecting transparent objects such as glass bottles and plastic films.

Q2: Can FM5BC detect transparent objects?
A: Yes. Light passes through the transparent object twice via the reflector, allowing small changes in light intensity to be detected.

Q3: What transparent objects can FM5BC detect?
A: TAKEX specifically lists transparent objects such as glass bottles and plastic films.

Q4: Why does FM5BC use polarized retroreflective sensing?
A: The polarized retroreflective method supports reliable transparent-object detection and stable detection of objects with specular surfaces.

Q5: What is the detecting distance of FM5BC?
A: The series lineup specifies a detecting range of 100 to 1,500 mm. Actual performance depends on the amplifier and target conditions.

Q6: What is the fiber length of FM5BC?
A: The fiber is 2 m long and uses a free-cutting design.

Q7: What is the allowable bending radius of FM5BC?
A: The allowable bending radius is R25.

Q8: What is the protection rating of FM5BC?
A: FM5BC has an IP66 protection rating.

Q9: Which fiber amplifiers are compatible with FM5BC?
A: FM5BC is compatible with F70AR, F70R, F80R, and F85RN fiber amplifiers.

Q10: Is a reflector supplied with FM5BC?
A: Yes. FM5BC includes a dedicated reflector, mounting bracket, and FA500 fiber cutter.
