M6 / M4 nut-type reflective fiber optic units

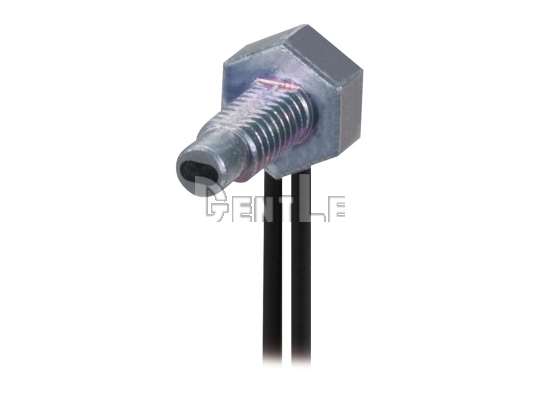

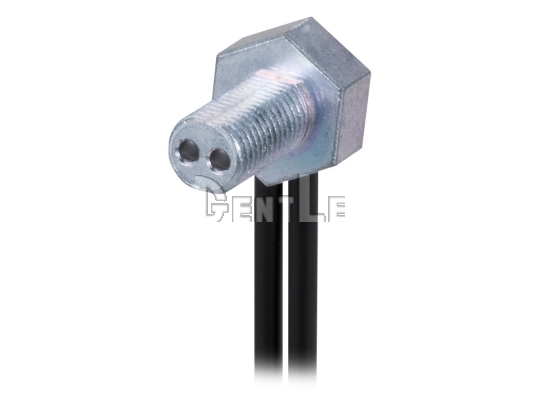

  • TAKEX FNU-R5NYBC and FNU-R8YBC are nut-type reflective fiber optic units for object presence and position detection.
  • FNU-R5NYBC uses an M6 built-in-lens head with 630 mm detection, while FNU-R8YBC uses a compact M4 head with up to 1,000 mm detection.
  • Brand TAKEX Takenaka Engineering Co., Ltd.
：
Add to Inquiry Cart
Features
  • M6 and M4 nut-type mounting: FNU-R5NYBC uses an M6 sensing head, while FNU-R8YBC uses a more compact M4 head for different installation requirements.
  • Single-side reflective sensing: Transmitting and receiving optics are located on the same sensing side, eliminating the need for an opposing fiber head.
  • Up to 1,000 mm detection: FNU-R5NYBC provides up to 630 mm detection, while FNU-R8YBC reaches up to 1,000 mm.
  • Narrow-view stable detection: A concentrated sensing area increases the received-light difference when a target enters the detection zone.
  • Reduced cable snagging: The fiber exits directly from the side of the sensing head, reducing protrusion and cable snagging inside equipment.
Specification
ItemSpec.
ModelFNU-R5NYBC
FNU-R8YBC
Detection methodReflective
Environmental featureOrdinary temperature
Tip appearanceNut
Tip sizeFNU-R5NYBC: M6
FNU-R8YBC: M4
Main featureFNU-R5NYBC: Built-in lens
FNU-R8YBC: Nut-type reflective sensing
Max. detecting distanceFNU-R5NYBC: 630 mm
FNU-R8YBC: 1,000 mm
Fiber length2 m, free-cutting
Applicable amplifiersF70AR, F70R, F80R, F85RN

Specification notes

  • Tip size selection: FNU-R5NYBC uses an M6 head, while FNU-R8YBC uses an M4 head for different mounting-hole and space requirements.
  • Detecting distance: FNU-R5NYBC provides up to 630 mm detection, while FNU-R8YBC provides up to 1,000 mm.
  • Reflective configuration: Both models transmit and receive light from the same sensing side. Actual detection depends on target material, color, and surface condition.
FAQ

Q1: What are TAKEX FNU-R5NYBC and FNU-R8YBC?
A: They are nut-type reflective fiber optic units for object presence and position detection, with different tip sizes and detecting distances.


Q2: What is the difference between FNU-R5NYBC and FNU-R8YBC?
A: FNU-R5NYBC uses an M6 built-in-lens head with up to 630 mm detection, while FNU-R8YBC uses an M4 head with up to 1,000 mm detection.


Q3: What is the maximum detecting distance of FNU-R5NYBC?
A: The maximum detecting distance is 630 mm.


Q4: What is the maximum detecting distance of FNU-R8YBC?
A: The maximum detecting distance is 1,000 mm.


Q5: Which model has the smaller sensing head?
A: FNU-R8YBC uses the smaller M4 nut-type sensing head, while FNU-R5NYBC uses an M6 head.


Q6: Does FNU-R5NYBC have a built-in lens?
A: Yes. FNU-R5NYBC uses a built-in lens for high-powered reflective sensing.


Q7: What is the fiber length of these models?
A: Both models use a 2 m free-cutting fiber.


Q8: How are FNU-R5NYBC and FNU-R8YBC mounted?
A: Their nut-type sensing heads can be held with a wrench and secured with a single nut.


Q9: Which fiber amplifiers are compatible with these models?
A: Both models are compatible with F70AR, F70R, F80R, and F85RN fiber amplifiers.


Q10: What applications are suitable for FNU-R5NYBC?
A: It can be used for object presence and position detection, including checking bolt insertion depth with the FNU-R5NYBC.
