Name: M6 nut-type retroreflective fiber optic unit for transparent object detection
Brand: TAKEX Takenaka Engineering Co., Ltd.
SKU: TAKEX_FNU-M5NYBC

Products

請選擇分類

TAKEX_FNU-M5NYBC

M6 nut-type retroreflective fiber optic unit for transparent object detection

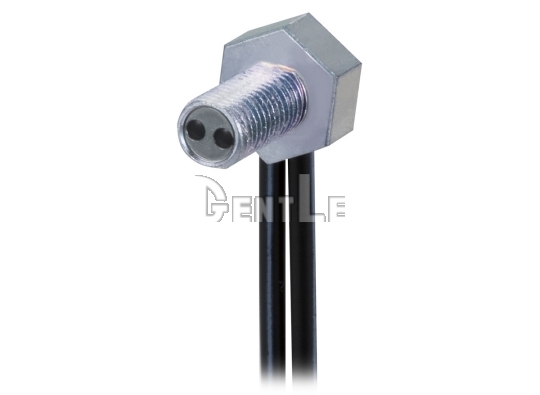

TAKEX FNU-M5NYBC is an M6 nut-type retroreflective fiber optic unit with a built-in lens for transparent object detection.
It provides up to 2,025 mm detection, a 2 m free-cutting fiber, R2 bending radius, and a compact side-exit fiber design for streamlined installation.

Brand

Add to Inquiry Cart

Features
Specification
FAQ

Features

Transparent object detection: The retroreflective configuration supports detection of transparent targets using a sensing head and reflector positioned across the sensing path.
Built-in high-power lens: The integrated lens provides a high-powered beam for stable detection, including environments affected by dust and particles.
Up to 2,025 mm detection: The maximum detecting distance reaches 2,025 mm, with actual range depending on the fiber amplifier, operating mode, and sensing conditions.
Easy M6 nut mounting: The M6 nut-type head can be held with a wrench and secured with a single nut for straightforward installation.
R2 free-cutting fiber: The 2 m free-cutting fiber supports an R2 allowable bending radius, while the side-exit design helps reduce protrusion and cable snagging.

Specification

Item	Spec.
Model	FNU-M5NYBC
Product type	Built-in-lens retroreflective fiber optic unit for transparent object detection
Detection method	Retroreflective
Environmental feature	Ordinary temperature
Tip appearance	Nut
Tip size	M6
Main features	Built-in lens, transparent object detection
Max. detecting distance	2,025 mm
Fiber optic cable length	2 m, free-cutting
Allowable bending radius	R2
Ambient temperature	−40 to +70°C, non-freezing and non-condensing
Fiber covering material	Polyethylene
Fiber core material	Plastic
Lens material	Acrylic resin
Sensing head material	Zinc alloy with trivalent chromate treatment
Tightening torque	0.98 N·m or less
Applicable amplifiers	F70AR, F70R, F80R, F85RN

Specification notes

Retroreflective configuration: FNU-M5NYBC uses a reflector opposite the sensing head to establish the retroreflective sensing path.
Detecting distance: Maximum detecting distance is 2,025 mm. Actual range varies according to the fiber amplifier, operating mode, and sensing conditions.
Compact installation: The M6 nut-type head, R2 fiber, and side-exit cable design help reduce protrusion and cable snagging inside equipment.

FAQ

Q1: What is TAKEX FNU-M5NYBC?
A: FNU-M5NYBC is an M6 nut-type retroreflective fiber optic unit with a built-in lens for transparent object detection.

Q2: What detection method does FNU-M5NYBC use?
A: It uses a retroreflective method with a sensing head and reflector positioned across the sensing path.

Q3: Can FNU-M5NYBC detect transparent objects?
A: Yes. FNU-M5NYBC is designed for transparent object detection using a retroreflective sensing configuration.

Q4: What is the maximum detecting distance of FNU-M5NYBC?
A: The maximum detecting distance is 2,025 mm. Actual range depends on the fiber amplifier and sensing conditions.

Q5: Does FNU-M5NYBC have a built-in lens?
A: Yes. The sensing head incorporates a lens for a high-powered and concentrated sensing beam.

Q6: What is the tip size of FNU-M5NYBC?
A: It uses an M6 nut-type sensing head.

Q7: What is the fiber length of FNU-M5NYBC?
A: The fiber length is 2 m and uses a free-cutting design.

Q8: What is the allowable bending radius of FNU-M5NYBC?
A: The allowable bending radius is R2.

Q9: Which fiber amplifiers are compatible with FNU-M5NYBC?
A: FNU-M5NYBC is compatible with F70AR, F70R, F80R, and F85RN fiber amplifiers.

Q10: Does FNU-M5NYBC require a reflector?
A: Yes. A reflector is used opposite the sensing head to establish the retroreflective sensing path. The K-20 reflector can be used with this configuration.
