Name: M4 threaded reflective fiber optic unit
Brand: TAKEX Takenaka Engineering Co., Ltd.
SKU: TAKEX_FR108BC

Products

請選擇分類

TAKEX_FR108BC

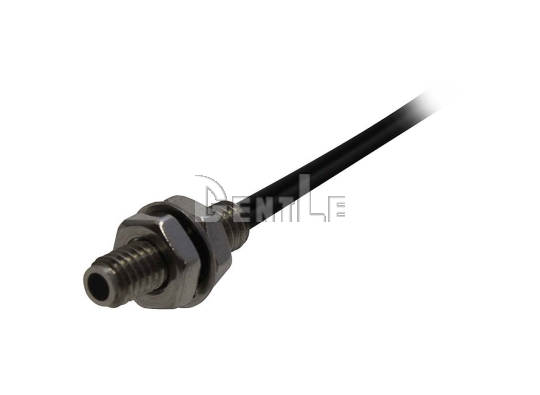

M4 threaded reflective fiber optic unit

TAKEX FR108BC is an M4 threaded reflective fiber optic unit with up to 1,000 mm detection.
It features a φ1.25 mm fiber cable, 2 m free-cutting length, R30 allowable bending radius, and −30 to +70°C operating temperature for compact reflective sensing installations.

Brand

Add to Inquiry Cart

Features
Specification
FAQ

Features

Up to 1,000 mm detection: FR108BC provides a maximum detecting distance of 1,000 mm for reflective object presence and position detection.
M4 threaded sensing head: The M4 threaded tip provides compact mounting for equipment with limited installation space.
φ1.25 mm slim fiber cable: The φ1.25 mm fiber cable helps reduce routing space inside equipment.
2 m free-cutting fiber: The 2 m fiber can be cut to suit the required equipment routing length.
R30 bending radius: The fiber supports an R30 allowable bending radius and an ambient temperature range of −30 to +70°C.

Specification

Item	Spec.
Model	FR108BC
Product type	Threaded reflective fiber optic unit
Detection method	Reflective
Environmental feature	Ordinary temperature
Tip appearance	Threaded
Tip size	M4
Max. detecting distance	1,000 mm
Fiber length	2 m, free-cutting
Ambient temperature	−30 to +70°C
Fiber covering material	Polyethylene
Fiber core material	Plastic
Fiber cable diameter	Φ1.25 mm
Allowable bending radius	R30
Standard detecting object	200 × 200 mm white drawing paper
Min. detecting object	Φ0.015 mm
Thread tightening torque	0.8 N·m or less
Applicable amplifiers	F2R, F70, F80R, F85RN

Specification notes

Detecting distance: Maximum detecting distance is 1,000 mm. Actual range varies with the fiber amplifier, target material, color, and surface condition.
Standard detecting object: The standard detecting object is 200 × 200 mm white drawing paper when used with F70R.
Minimum detecting object: The minimum detecting object is Φ0.015 mm, excluding F2R conditions. Actual detectable size varies with operating conditions.

FAQ

Q1: What is TAKEX FR108BC?
A: FR108BC is an M4 threaded reflective fiber optic unit for object presence and position detection.

Q2: What is the maximum detecting distance of FR108BC?
A: The maximum detecting distance is 1,000 mm. Actual range varies with the amplifier and sensing conditions.

Q3: What tip size does FR108BC use?
A: FR108BC uses an M4 threaded sensing head.

Q4: What is the fiber length of FR108BC?
A: The fiber length is 2 m and uses a free-cutting design.

Q5: What is the fiber cable diameter of FR108BC?
A: The fiber cable diameter is φ1.25 mm.

Q6: What is the allowable bending radius of FR108BC?
A: The allowable bending radius is R30.

Q7: What is the ambient temperature range of FR108BC?
A: The ambient temperature range is −30 to +70°C.

Q8: What is the minimum detecting object of FR108BC?
A: The minimum detecting object is φ0.015 mm, excluding F2R conditions. Actual performance depends on the sensing conditions.

Q9: Which fiber amplifiers are compatible with FR108BC?
A: FR108BC can be used with F2R, F70, F80R, and F85RN fiber amplifiers.

Q10: What applications are suitable for FR108BC?
A: FR108BC is suited to reflective object presence and position detection requiring an M4 threaded head, slim fiber cable, and free-cutting fiber routing.
