TAKEX_FRLV732BC

11.1 mm side-view wide-area reflective fiber optic unit

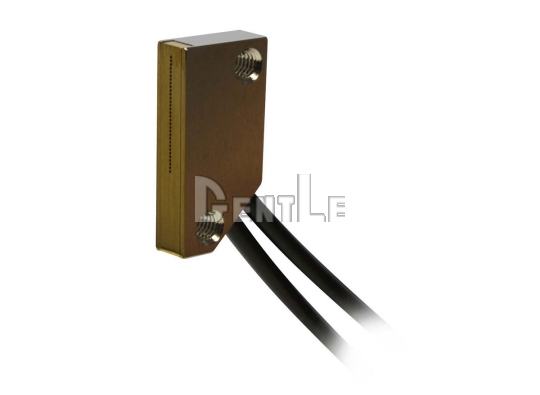

TAKEX FRLV732BC is a side-view wide-area reflective fiber optic unit with an 11.1 mm detecting width.
It provides up to 450 mm detection, a 2 m free-cutting fiber, φ2.2 mm cable, and R4 bending radius for compact side-view reflective sensing installations.

Brand

Add to Inquiry Cart

Features
Specification
FAQ

Features

11.1 mm wide detecting area: The 11.1 mm sensing width covers a broader reflective area for object presence and position detection.
Side-view sensing direction: Light is transmitted and received from the side of the fiber head, supporting installations where front-facing sensing is difficult.
Up to 450 mm detection: The maximum detecting distance reaches 450 mm, depending on the fiber amplifier and sensing conditions.
R4 bending radius: The R4 allowable bending radius supports compact routing inside space-limited automation equipment.
2 m free-cutting fiber: FRLV732BC uses a 2 m free-cutting fiber for flexible equipment routing and installation.

Specification

Item	Spec.
Model	FRLV732BC
Product type	Side-view wide-area reflective fiber optic unit
Detection method	Reflective
Environmental feature	Ordinary temperature
Tip appearance	Wide area
Sensing direction	Side view
Detecting width	11.1 mm
Max. detecting distance	450 mm
Fiber length	2 m, free-cutting
Fiber cable diameter	Φ2.2 mm
Fiber core	Φ0.265 mm × 16
Fiber covering material	Polyethylene
Fiber core material	Plastic
Allowable bending radius	R4
Ambient temperature	−30 to +70°C
Standard detecting object	100 × 100 mm white drawing paper with F70R
Min. detecting object	Φ0.015 mm, excluding some amplifier conditions
Applicable amplifiers	F2R, F70, F80R, F85RN

Specification notes

Side-view wide-area design: FRLV732BC provides an 11.1 mm detecting width from the side of the fiber head for installations with directional space constraints.
Maximum detecting distance: Maximum detecting distance is 450 mm. Actual distance varies with the fiber amplifier, operating mode, and target reflectivity.
R4 fiber routing: The R4 allowable bending radius supports tighter routing inside compact equipment while maintaining the specified bending limit.

FAQ

Q1: What is TAKEX FRLV732BC?
A: FRLV732BC is an 11.1 mm side-view wide-area reflective fiber optic unit for object presence and position detection.

Q2: What is the detecting width of FRLV732BC?
A: The detecting width is 11.1 mm.

Q3: Why is FRLV732BC called a side-view fiber?
A: The transmitting and receiving direction is from the side of the fiber head rather than directly from the front.

Q4: What is the maximum detecting distance of FRLV732BC?
A: The maximum detecting distance is 450 mm. Actual performance varies with the amplifier and sensing conditions.

Q5: What is the difference between FRLV732BC and FRL732BC?
A: Both provide an 11.1 mm wide detecting area, but FRLV732BC uses a side-view sensing configuration.

Q6: What is the fiber length of FRLV732BC?
A: The fiber length is 2 m and uses a free-cutting design.

Q7: What is the allowable bending radius of FRLV732BC?
A: The allowable bending radius is R4.

Q8: What is the ambient temperature range?
A: The ambient temperature range is −30 to +70°C.

Q9: Which fiber amplifiers are compatible with FRLV732BC?
A: FRLV732BC can be used with F2R, F70, F80R, and F85RN fiber amplifiers.

Q10: What applications are suitable for FRLV732BC?
A: It is suited to automation equipment requiring side-view sensing, an 11.1 mm wide detection area, compact R4 fiber routing, and reflective object presence or position detection.
