SUS tube reflective fiber optic units
| Item | Spec. |
|---|---|

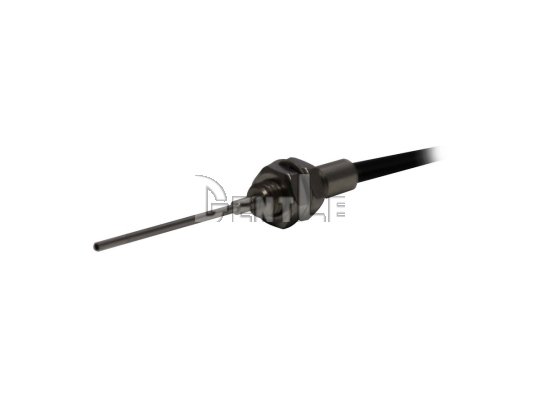

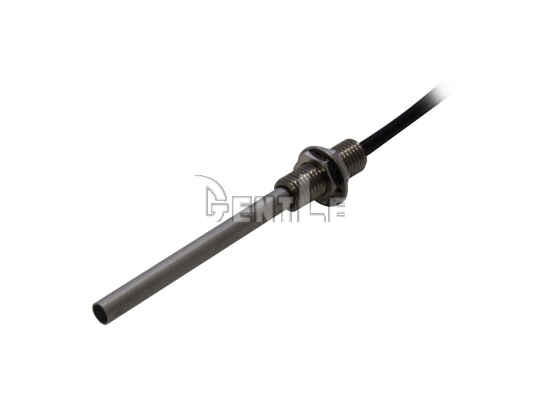

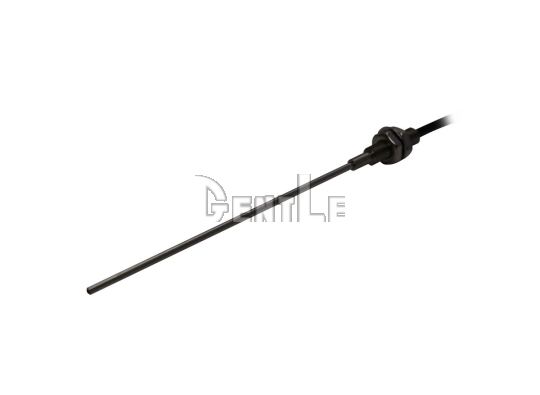

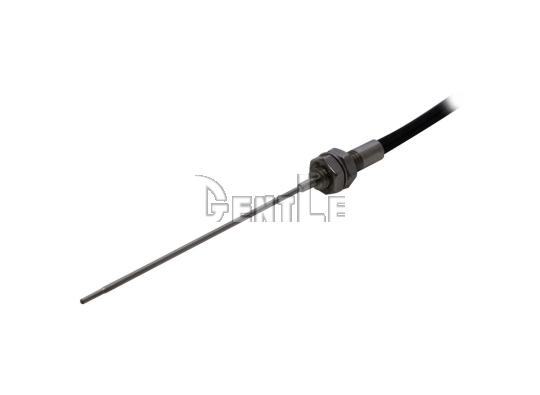

| Model | FRS105BC FRS53BC FRS5BC FRS83BC FRS84BC |
| Product type | SUS tube reflective fiber optic units |
| Detection method | Reflective |
| Environmental feature | Ordinary temperature |
| Main feature | SUS tube sensing head |
| Tip configuration | FRS105BC: M6 threaded FRS53BC: M6 threaded FRS5BC: M6 threaded FRS83BC: Φ1.3 mm cylindrical FRS84BC: M4 threaded |
| SUS tube | FRS105BC: 40 mm FRS53BC: 35 mm, bendable FRS5BC: 70 mm, bendable FRS83BC: - FRS84BC: 70 mm, bendable |
| Applicable amplifiers | F2R, F70, F80R, F85RN |
Specification notes
Q1: What are TAKEX FRS105BC, FRS53BC, FRS5BC, FRS83BC, and FRS84BC?
A: They are reflective fiber optic units with SUS tube sensing heads for object presence and position detection.
Q2: What are the main differences among these models?
A: The main differences are head size, mounting configuration, and SUS tube length.
Q3: What is the configuration of FRS105BC?
A: FRS105BC uses an M6 threaded head with a 40 mm SUS tube.
Q4: Is the SUS tube of FRS53BC bendable?
A: Yes. FRS53BC uses a 35 mm SUS tube that can be bent within the permitted area.
Q5: What is the SUS tube length of FRS5BC?
A: FRS5BC uses a 70 mm bendable SUS tube with an M6 threaded head.
Q6: What is the difference between FRS84BC and FRS5BC?
A: Both use 70 mm bendable SUS tubes, but FRS84BC has an M4 threaded head while FRS5BC uses M6.

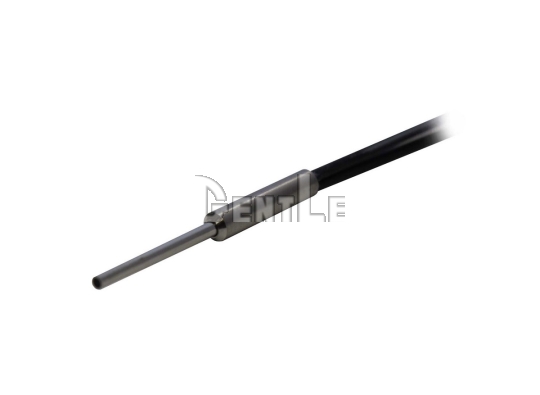

Q7: What sensing head does FRS83BC use?
A: FRS83BC uses a φ1.3 mm cylindrical sensing head with a φ1.25 mm fiber optic cable.
Q8: What is the maximum detecting distance of FRS83BC?
A: The maximum detecting distance is 770 mm, depending on the amplifier and target conditions.
Q9: Which fiber amplifiers are listed for FRS83BC?
A: FRS83BC is listed with F2R, F70, F80R, and F85RN.
Q10: Where are SUS tube reflective fibers useful?
A: They are useful where the sensing point needs to extend into equipment or where a standard straight sensing head is difficult to position.
