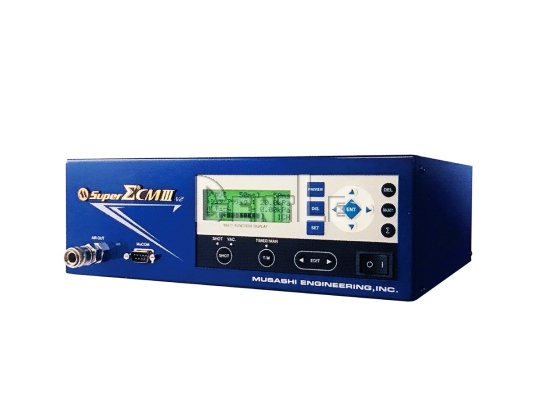

MUSASHI_Super ΣCMIII-V5 / V2

Fully Digital Controlled Dispenser

  • Automatic correction of water head level compensation.
  • Automatic vacuum control function.
  • Remaining fluid display function.
  • CE Marking certified, EU RoHs compliant.
  • Brand MUSASHI Engineering
Features

  “Σ 3 major functions”helps increase yield and contributes to a smarter production line.

  • Function 1:Automatic correction of volume reduction

Correction of reduction in dispensing amount caused by the effects of decreased syringe volume; Delivers reliable, high-precision dispensing throughout the entire syringe.



  • Function 2:Automatic vacuum correction

Constantly maintains the optimum vacuum level automatically for more reliable dispensing precision.



  • Function 3:Automatic low fluid alarm

Constantly detects and monitors the remaining fluid level in the syringe with a high level of precision.

Specification
ModelSuper ΣCMIII-V5Super ΣCMIII-V2
Control systemMicroprocessor-controlled / pneumatic
Dispensing methodAir pulse stabilizing circucit
Dispensing modeTimed mode / manual mode
Compressed air outlet0.030 ~ 0.500 MPa0.005 ~ 0.200 MPa
Dispensing period0.001 ~ 9999.999 s
Vacuum pressure range-0.020 ~ 0 MPa
Main functionAutomatic correction of volume reduction, automatic liquid drip prevention, automatic vacuum correction, remaining fluid display function, α revision, δ revision
Program memory100 CH
RS-232C serial communicationYes
Input voltage

AC100 ~ 240V

50 / 60 Hz

Power consumption30 W
DimensionsW300 x D300 x H100 mm
Weight5.8 kg



File Downloads
File Name
File Type
Download
SuperΣCMⅢ _E
PDF
